Главная Каталог продукции Toolunited 16 310-09 - Internal turning tool no 9 - offset side cutting design CB04RS-01 VP15TF

CB04RS-01 VP15TF

Артикул: 492279

В наличии

В корзину

Описание

Характеристики

COMPC Company code

MI - Mitsubishi Materials

Delivery state valid from

4/1/2022

DIN

ZYL00402205

DMIN Minimum bore diameter

4.2 mm

FamilyProducts

boring,small tools

GRDMFG Grade manufacturers designation

VP15TF

HAND Cutting direction

R - Right

ID Technical product number

492279

Interface codes

J6 /

ISYC Subclass

310-09 - Internal turning tool no 9 - offset side cutting design

LF Functional length

60 mm

LH Head length

10 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0040

LOC-03 DCONMS Diameter

4 mm

LOC-03 H Shank height

3.6 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00402205

Name Identifying order number

CB04RS-01 VP15TF

OAL Overall length

60 mm

STDDES Standard designation

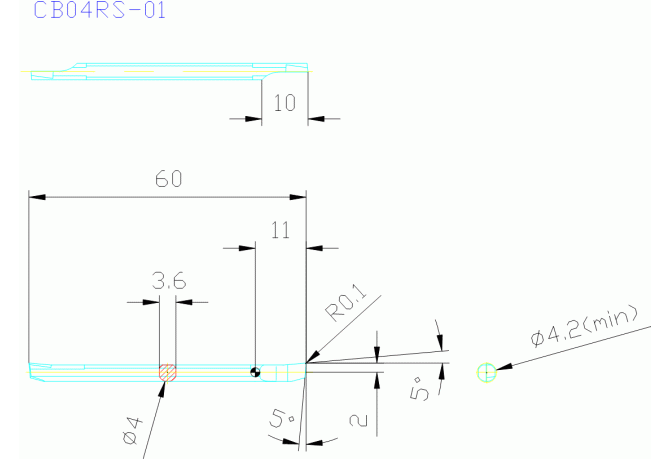

CB04RS-01

WF Functional width

2 mm

Working process

No working processes available
