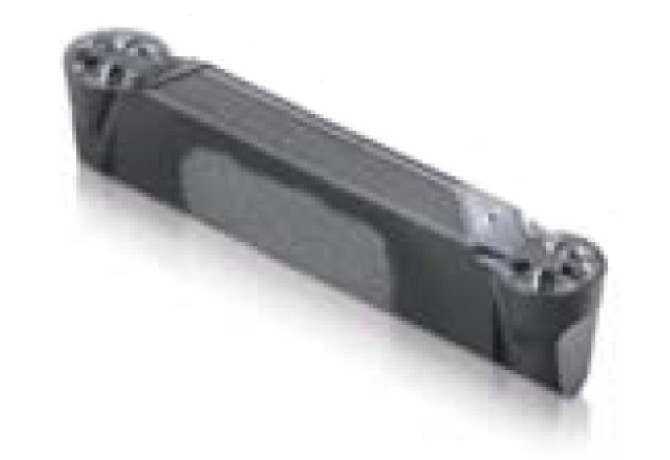

WMTR405M4UPCWP10CT

Артикул: 4170179

В наличии

В корзину

Описание

Характеристики

CBMD Chip breaker manufacturers designation

COMPC Company code

WI - Widia

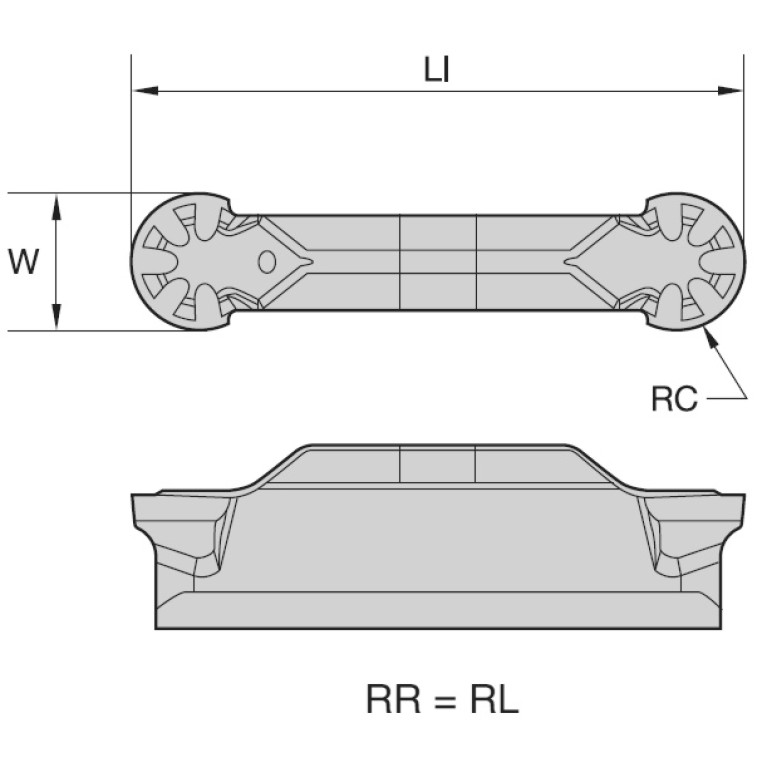

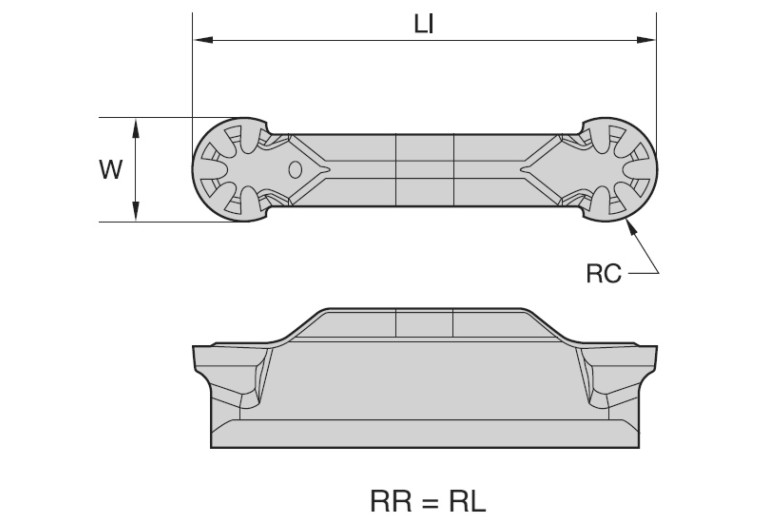

CRE Spot radius

2.03 mm

CW Cutting width

4.05 mm

Delivery state valid from

5/12/2012

DIN

WI-WMT4

FamilyProducts

Plunge and Contour Insert WMT-U-PC, moulded

GRD2ND Standard designation of the grade 2nd application

HC-K20

GRDMFG Grade manufacturers designation

WP10CT

GRDPRIO Standard designation of the grade main application

HC-P10

ID Technical product number

4170179

IFS Insert mounting style code

6 - Prismatic clamping, convex

IH Insert hand

N - Neutral

INSL Insert length

25.58 mm

Interface codes

J6 /

ISYC Subclass

202-06 - Insert, two cutting edges for profiling

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

WI-WMT4

Materials

P,M,K

Name Identifying order number

WMTR405M4UPCWP10CT

NOF Flute count

NT Tooth count

PFS Profile form

TPT Thread profile type

V - Full profile

Working process

No working processes available
