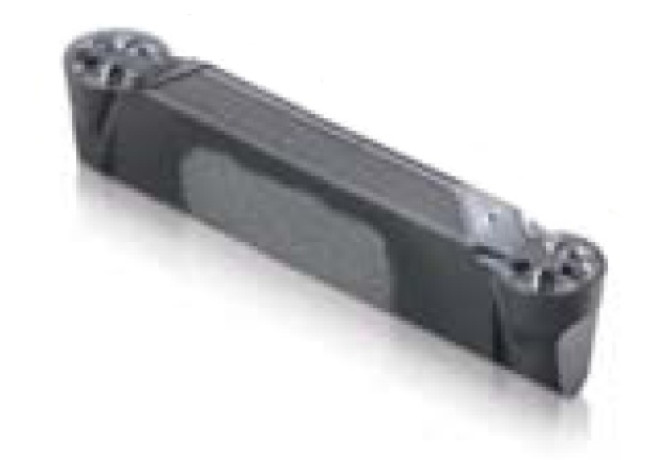

Главная Каталог продукции Toolunited 16 202-06 - Insert, two cutting edges for profiling WMTR300M3PPCWU10HT

WMTR300M3PPCWU10HT

Артикул: WMTR300M3PPCWU10HT

В наличии

В корзину

Описание

Характеристики

CBMD Chip breaker manufacturers designation

COMPC Company code

WI - Widia

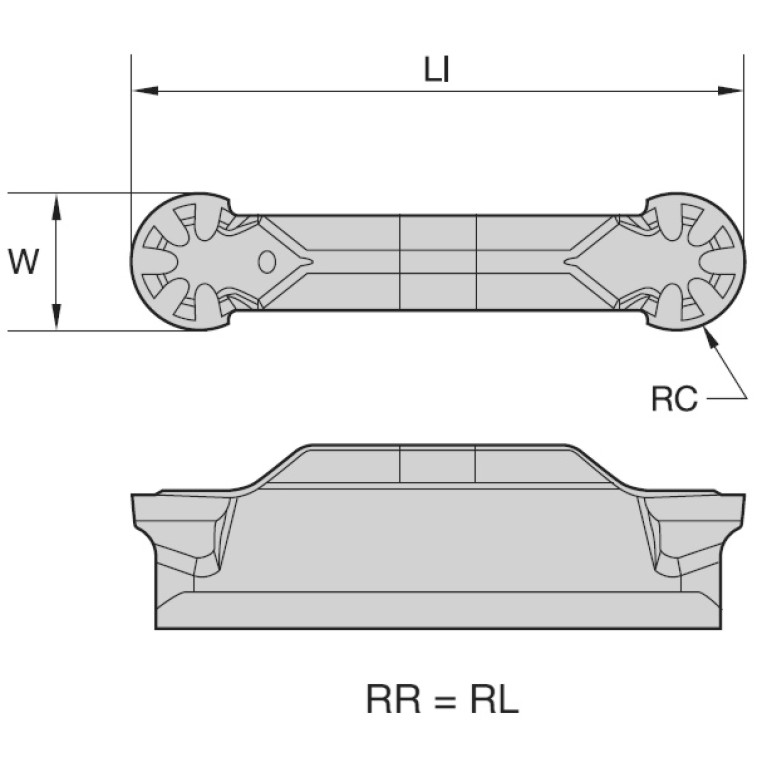

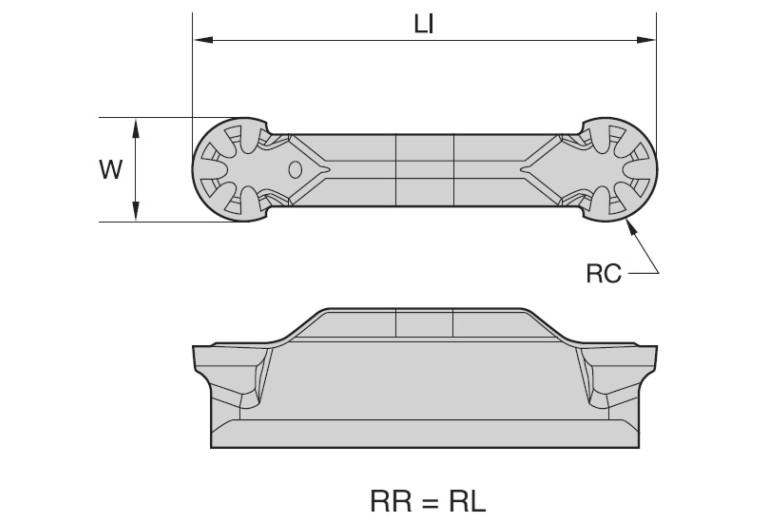

CRE Spot radius

1.5 mm

CW Cutting width

3 mm

Delivery state valid from

5/12/2012

DIN

WI-WMT3

FamilyProducts

Plunge and Contour Insert WMT-P-PC, precision

GRD2ND Standard designation of the grade 2nd application

HW-M10

GRD3RD Standard designation of the grade 3rd application

HW-S15

GRDMFG Grade manufacturers designation

WU10HT

GRDPRIO Standard designation of the grade main application

HW-K15

ID Technical product number

WMTR300M3PPCWU10HT

IFS Insert mounting style code

6 - Prismatic clamping, convex

IH Insert hand

N - Neutral

INSL Insert length

25.4 mm

Interface codes

J6 /

ISYC Subclass

202-06 - Insert, two cutting edges for profiling

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

WI-WMT3

Materials

P,M,K,N,S

Name Identifying order number

WMTR300M3PPCWU10HT

NOF Flute count

NT Tooth count

PFS Profile form

TPT Thread profile type

V - Full profile

Working process

No working processes available
