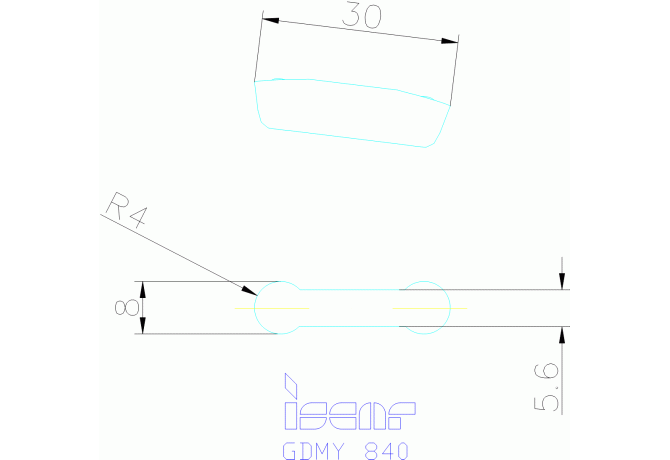

GDMY 840 IC428

Артикул: 6494333

В наличии

В корзину

Описание

Характеристики

CB Chip breaker face count

0 - Without chip breaker

COATN Coating / Покрытие

CVD

COMPC Company code

IS - Iscar

CRE Spot radius

4 mm

CW Cutting width

8 mm

CWLD Cutting width lower deviation

0.05 mm

CWUD Cutting width upper deviation

-0.05 mm

Delivery state valid from

12/1/2014

FamilyProducts

GDMY 840 IC428

GRD2ND Standard designation of the grade 2nd application

HC-P15

GRD3RD Standard designation of the grade 3rd application

HC-H25

GRDMFG Grade manufacturers designation

IC428

GRDPRIO Standard designation of the grade main application

HC-K20

ID Technical product number

6494333

IH Insert hand

N - Neutral

INSL Insert length

25 mm

Interface codes

ISYC Subclass

202-06 - Insert, two cutting edges for profiling

Name Identifying order number

GDMY 840 IC428

NOF Flute count

NT Tooth count

PDPT Profile depth insert

25 mm

PFS Profile form

S1 Insert thickness total

6.4 mm

W1 Insert width

5.6 mm

Working process

No working processes available

Главный задний угол (AN) / Clearance angle major (AN)

7 Degree
