MLP2004L UTi20T

Артикул: MLP2004L UTi20T

В наличии

В корзину

Описание

Характеристики

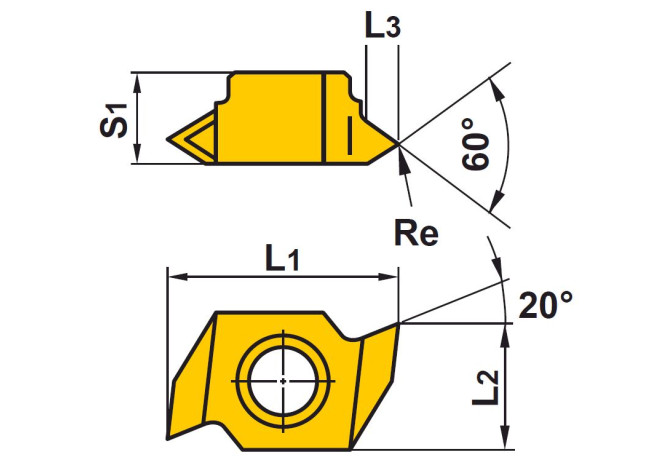

CB Chip breaker face count

0 - Without chip breaker

COMPC Company code

MI - Mitsubishi Materials

CRE Spot radius

0.4 mm

Delivery state valid from

4/1/2022

DIN

MI-MLP20 L

FamilyProducts

internal insert, MLP type

GAN Insert rake angle

20 Degree

GRD2ND Standard designation of the grade 2nd application

CM-P30

GRD3RD Standard designation of the grade 3rd application

CM-M30

GRDMFG Grade manufacturers designation

UTi20T

GRDPRIO Standard designation of the grade main application

CM-P20

IFS Insert mounting style code

4 - Counter bore for screws with taper angle from 70° to 90°

IH Insert hand

L - Left

INSL Insert length

16.8 mm

Interface codes

J6 /

ISYC Subclass

202-10 - Threading insert with two cutting edges

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

MI-MLP20 L

Name Identifying order number

MLP2004L UTi20T

NOF Flute count

NT Tooth count

PDPT Profile depth insert

3 mm

PFS Profile form

PSIRL Cutting edge angle major left hand

60 Degree

PSIRR Cutting edge angle major right hand

60 Degree

STDDES Standard designation

MLP2004L

TPT Thread profile type

V - Full profile

TTP Thread type

I - Internal thread

W1 Insert width

6.35 mm

Working process

DDI - Internal turning,DEI - Grooving,DGI - Thread turning, internal
