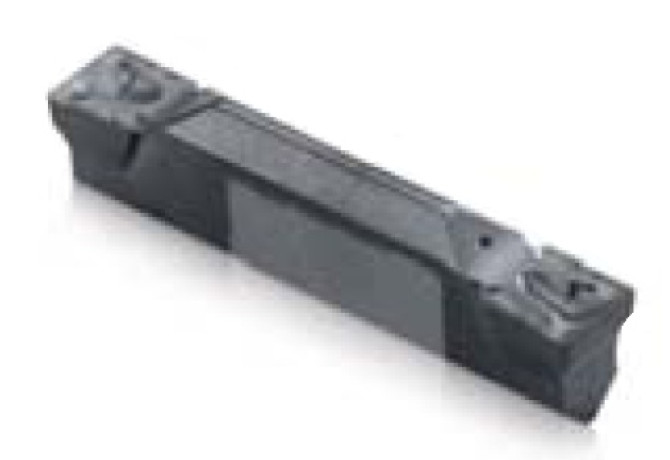

Главная Каталог продукции Toolunited 16 202-04 - Insert, two cutting edges for parting, self clamping WMTS305M3U06PTWP25CT

WMTS305M3U06PTWP25CT

Артикул: 4169559

В наличии

В корзину

Описание

Характеристики

CBMD Chip breaker manufacturers designation

COMPC Company code

WI - Widia

CW Cutting width

3.05 mm

Delivery state valid from

5/12/2012

DIN

WI-WMT3

FamilyProducts

Grooving and Turning insert WMT-U-PT, moulded

GRD2ND Standard designation of the grade 2nd application

HC-K30

GRDMFG Grade manufacturers designation

WP25CT

GRDPRIO Standard designation of the grade main application

HC-P25

ID Technical product number

4169559

IFS Insert mounting style code

6 - Prismatic clamping, convex

IH Insert hand

N - Neutral

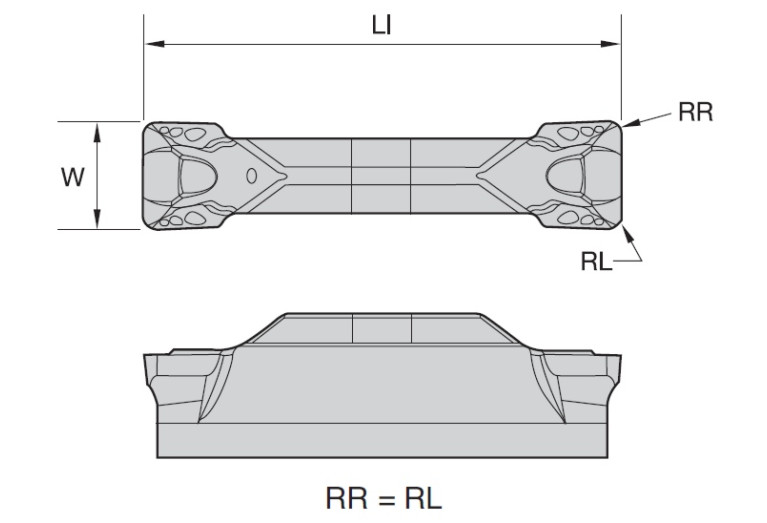

INSL Insert length

25.78 mm

Interface codes

J6 /

ISYC Subclass

202-04 - Insert, two cutting edges for parting, self clamping

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

WI-WMT3

Materials

P,M,K

Name Identifying order number

WMTS305M3U06PTWP25CT

NOF Flute count

NT Tooth count

PFS Profile form

REL Corner radius left hand

0.61 mm

RER Corner radius right hand

0.61 mm

TPT Thread profile type

V - Full profile

Working process

No working processes available
