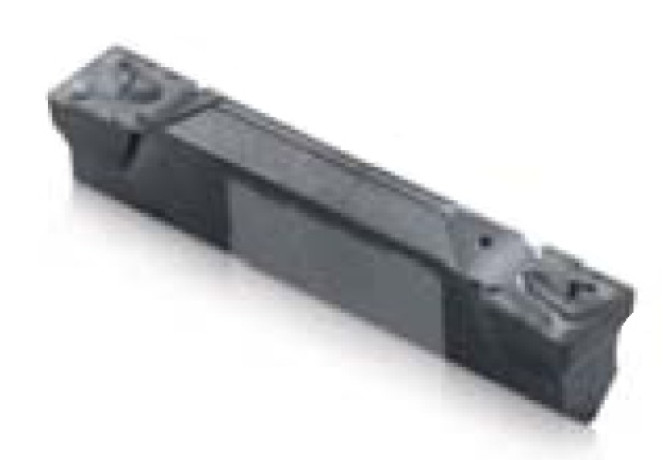

Главная Каталог продукции Toolunited 16 202-04 - Insert, two cutting edges for parting, self clamping WMTS125I3P03PTWU10PT

WMTS125I3P03PTWU10PT

Артикул: WMTS125I3P03PTWU10PT

В наличии

В корзину

Описание

Характеристики

CBMD Chip breaker manufacturers designation

COMPC Company code

WI - Widia

CW Cutting width

3.17 mm

Delivery state valid from

5/12/2012

DIN

WI-WMT3

FamilyProducts

Grooving and Turning insert WMT-P-PT, precision

GRD2ND Standard designation of the grade 2nd application

HC-K15

GRD3RD Standard designation of the grade 3rd application

HC-N20

GRDMFG Grade manufacturers designation

WU10PT

GRDPRIO Standard designation of the grade main application

HC-P15

ID Technical product number

WMTS125I3P03PTWU10PT

IFS Insert mounting style code

6 - Prismatic clamping, convex

IH Insert hand

N - Neutral

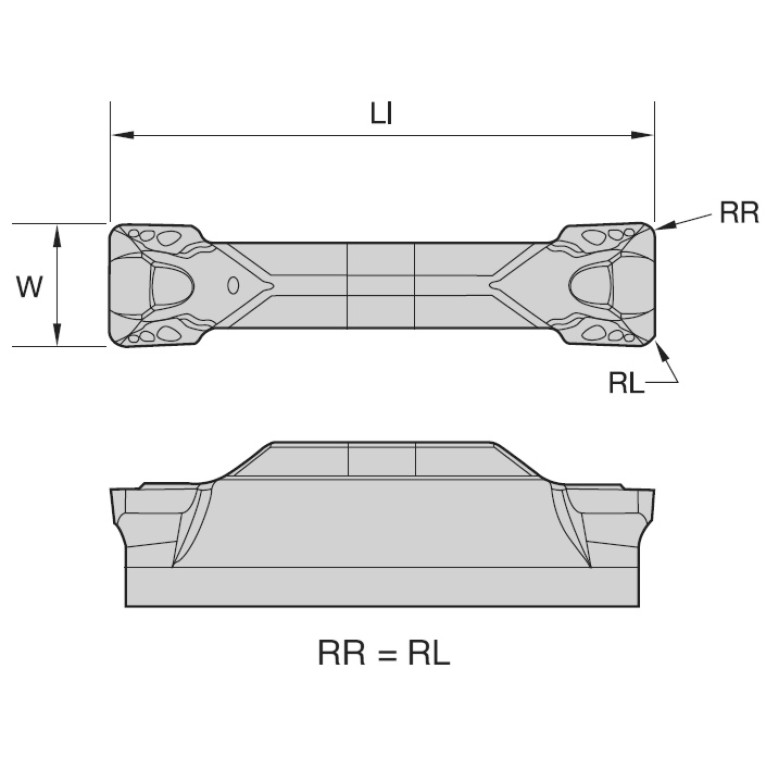

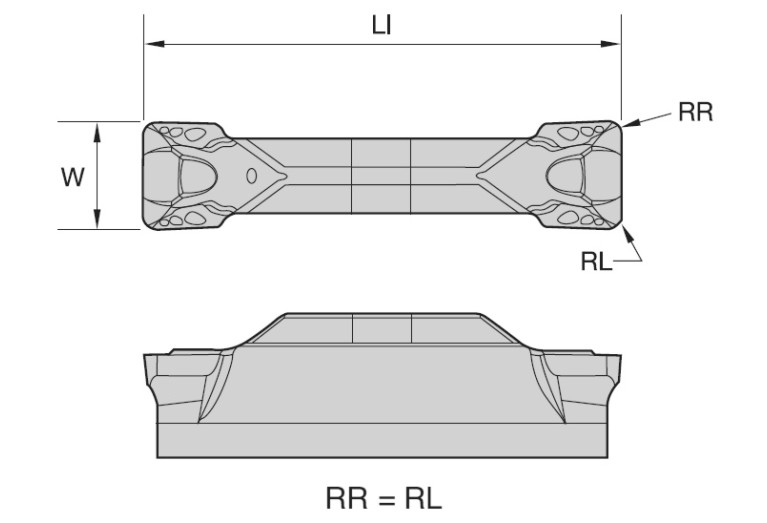

INSL Insert length

25.4 mm

Interface codes

J6 /

ISYC Subclass

202-04 - Insert, two cutting edges for parting, self clamping

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

WI-WMT3

Materials

P,M,K,N,S,H

Name Identifying order number

WMTS125I3P03PTWU10PT

NOF Flute count

NT Tooth count

PFS Profile form

REL Corner radius left hand

0.23 mm

RER Corner radius right hand

0.23 mm

TPT Thread profile type

V - Full profile

Working process

No working processes available
