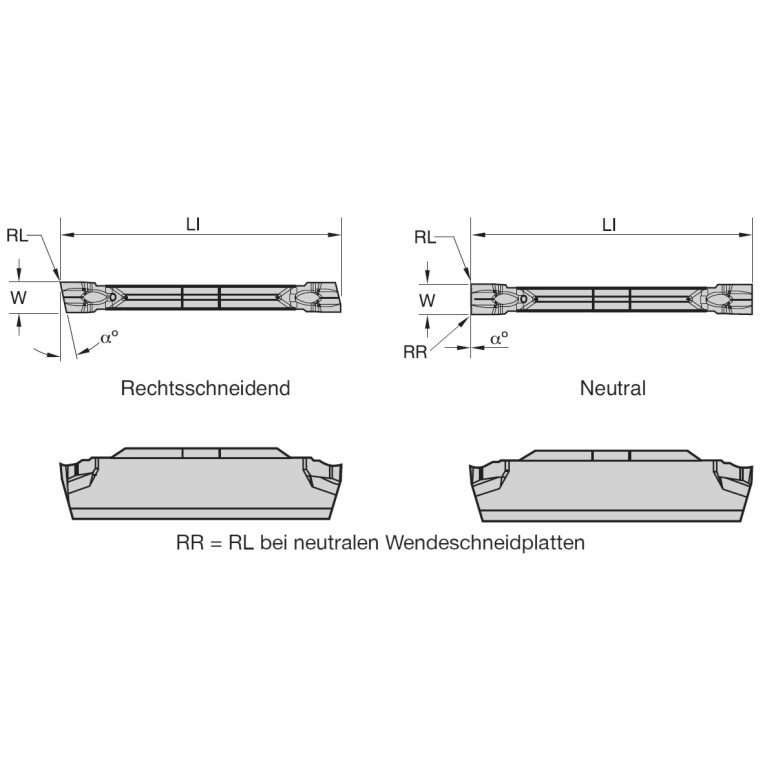

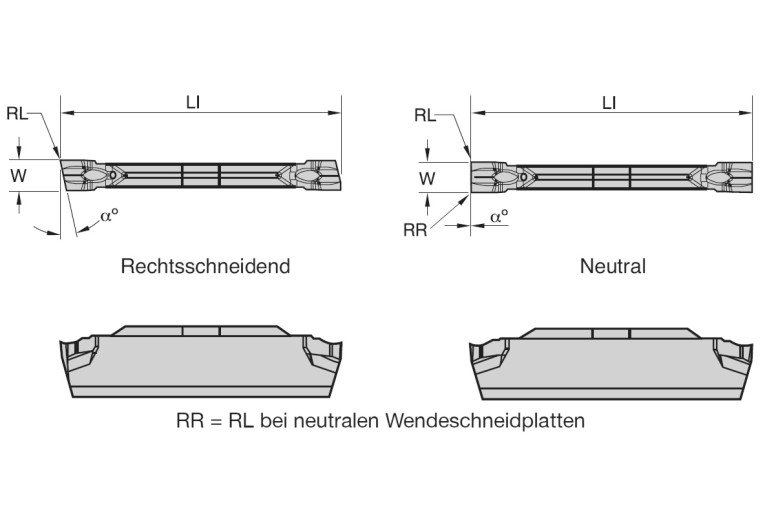

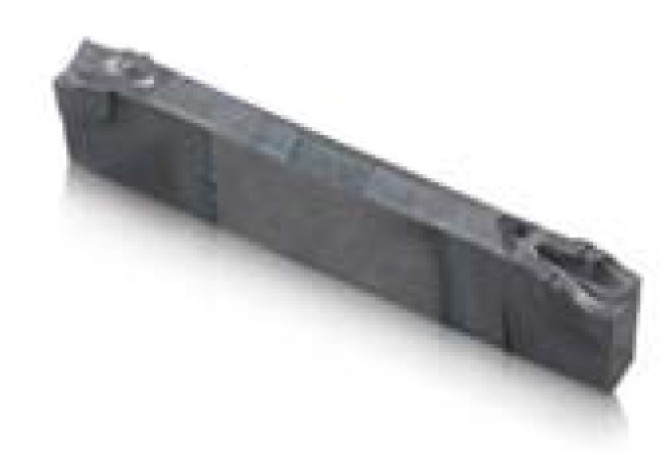

Главная Каталог продукции Toolunited 16 202-04 - Insert, two cutting edges for parting, self clamping WMTC020L12CM08WU25PT

WMTC020L12CM08WU25PT

Артикул: 4169680

В наличии

В корзину

Описание

Характеристики

CBMD Chip breaker manufacturers designation

COMPC Company code

WI - Widia

CW Cutting width

2 mm

Delivery state valid from

5/12/2012

DIN

WI-WMT2

FamilyProducts

cut-off insert WMT-CM

GRD2ND Standard designation of the grade 2nd application

HC-M25

GRD3RD Standard designation of the grade 3rd application

HC-N30

GRDMFG Grade manufacturers designation

WU25PT

GRDPRIO Standard designation of the grade main application

HC-P30

ID Technical product number

4169680

IFS Insert mounting style code

6 - Prismatic clamping, convex

IH Insert hand

L - Left

INSL Insert length

19.25 mm

Interface codes

J6 /

ISYC Subclass

202-04 - Insert, two cutting edges for parting, self clamping

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

WI-WMT2

Materials

P,M,K,N,S

Name Identifying order number

WMTC020L12CM08WU25PT

NOF Flute count

NT Tooth count

PFS Profile form

PSIRL Cutting edge angle major left hand

12 Degree

RER Corner radius right hand

0.08 mm

TPT Thread profile type

V - Full profile

Working process

No working processes available
