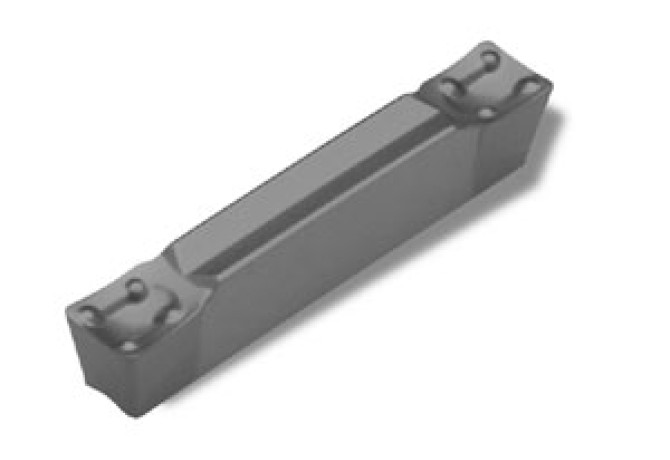

GX24-3E4.00N0.40 CTCP335

Артикул: GX24-3E4.00N0.40 CTCP335

В наличии

В корзину

Описание

Характеристики

ANL Clearance angle flank left hand

2.5 Degree

ANR Clearance angle flank right hand

2.5 Degree

CB Chip breaker face count

1 - With chip breaker one-side

COATN Coating / Покрытие

colour

COMPC Company code

CE - Ceratizit

CW Cutting width

4 mm

CWLD Cutting width lower deviation

0.05 mm

CWUD Cutting width upper deviation

0.05 mm

FamilyProducts

carbide parting and grooving insert

GRDMFG Grade manufacturers designation

CTCP335

GRDPRIO Standard designation of the grade main application

HC-P30

IFS Insert mounting style code

7 - Prismatic clamping, concave

IH Insert hand

N - Neutral

INSL Insert length

24 mm

Interface codes

ISYC Subclass

202-04 - Insert, two cutting edges for parting, self clamping

Materials

P,M,K

Name Identifying order number

GX24-3E4.00N0.40 CTCP335

NOF Flute count

NT Tooth count

PDPT Profile depth insert

3 mm

PFS Profile form

PSIRL Cutting edge angle major left hand

0 Degree

PSIRR Cutting edge angle major right hand

0 Degree

REL Corner radius left hand

0.4 mm

RER Corner radius right hand

0.4 mm

W1 Insert width

3.05 mm

Working process

DAA - Parting,DEA - Outer diameter grooving

Главный задний угол (AN) / Clearance angle major (AN)

6 Degree
