Главная Каталог продукции Toolunited 16 202-03 - Insert, two cutting edges for grooving and parting, self clamping ID RCGR 5.00 TM LC232F

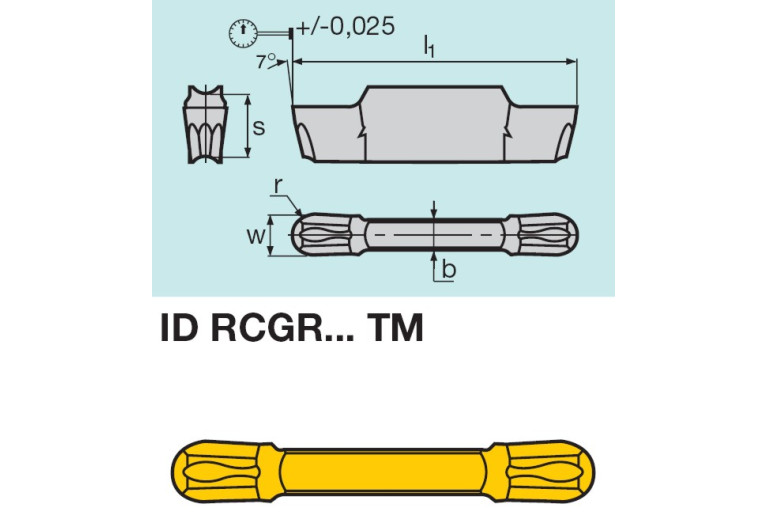

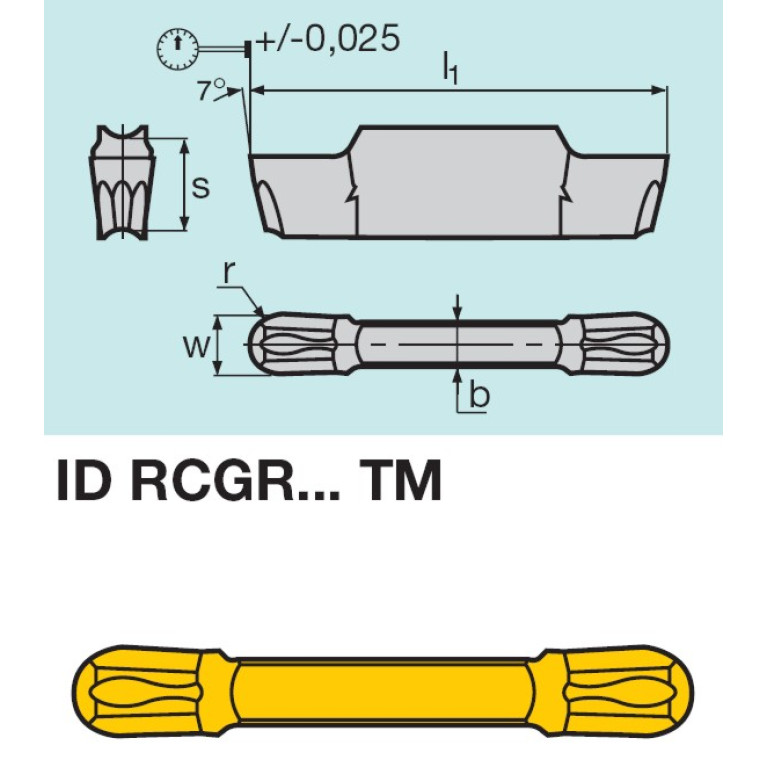

ID RCGR 5.00 TM LC232F

Артикул: ID RCGR 5.00 TM LC232F

В наличии

В корзину

Описание

Характеристики

CB Chip breaker face count

1 - With chip breaker one-side

COMPC Company code

BK - Boehlerit

CW Cutting width

5 mm

Delivery state valid from

036

DIN

BK-IDRCGRTM

FamilyProducts

Platten Innen Einstechen, Stech- und Kopierdrehen

GRDMFG Grade manufacturers designation

LC232F

ID Technical product number

ID RCGR 5.00 TM LC232F

IFS Insert mounting style code

7 - Prismatic clamping, concave

IH Insert hand

N - Neutral

INSL Insert length

25 mm

Interface codes

J6 /

ISYC Subclass

202-03 - Insert, two cutting edges for grooving and parting, self clamping

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

BK-IDRCGRTM

Name Identifying order number

ID RCGR 5.00 TM LC232F

NOF Flute count

PFS Profile form

STDDES Standard designation

ID RCGR 5.00 TM

W1 Insert width

4 mm

Working process

DEI - Grooving

Главный задний угол (AN) / Clearance angle major (AN)

7 Degree
