Главная Каталог продукции Toolunited 16 202-03 - Insert, two cutting edges for grooving and parting, self clamping GX24-3E400N08-UF4 WKP23S

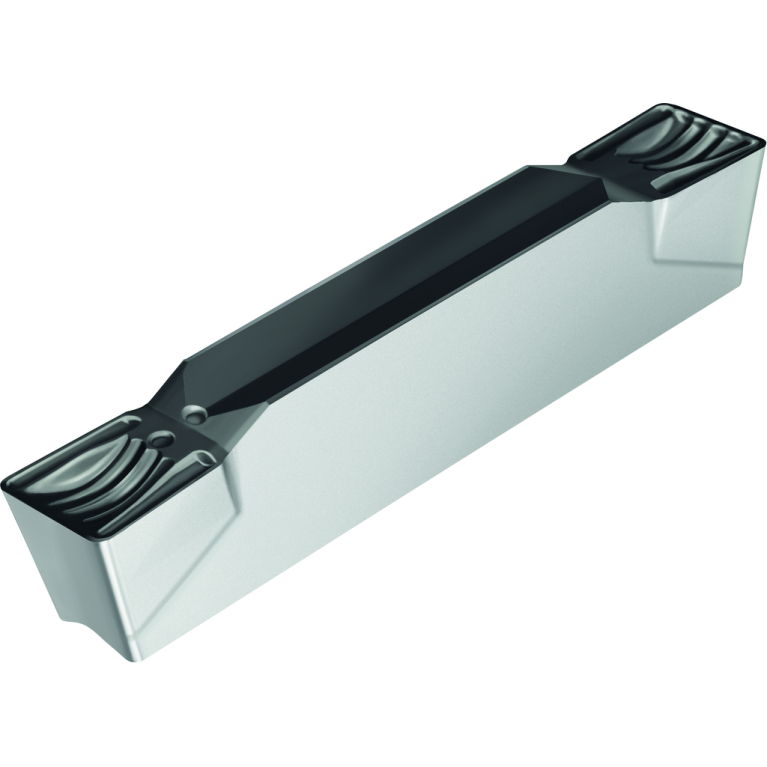

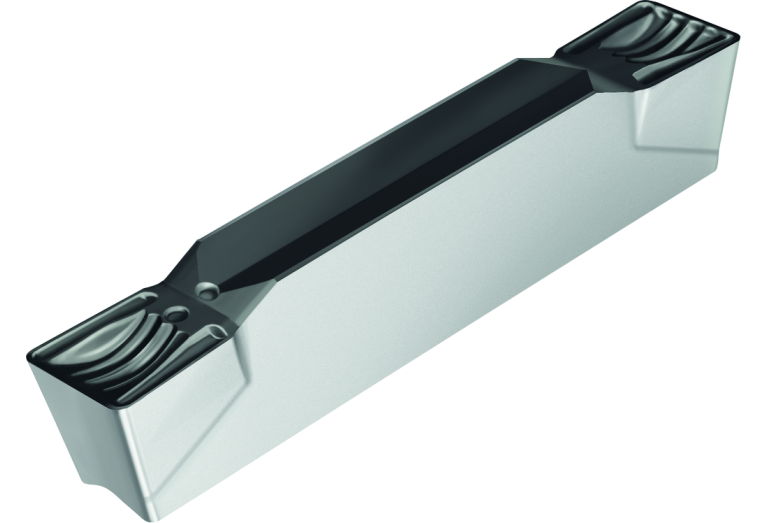

GX24-3E400N08-UF4 WKP23S

Артикул: 6529443

В наличии

В корзину

Описание

Характеристики

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

UF4

COATN Coating / Покрытие

TiCN+Al2O3+(TiCN)

COMPC Company code

W - Walter

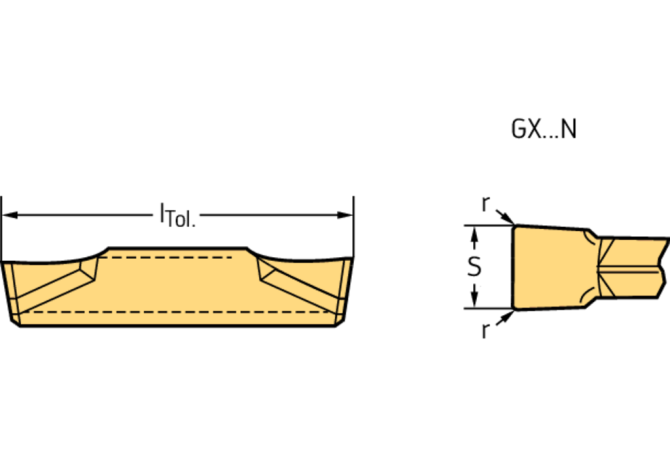

CW Cutting width

4 mm

Delivery state valid from

12/1/2023

DIN

W-GX2430407$$EX40

FamilyProducts

Grooving and recessing – cutting inserts GX

GRDMFG Grade manufacturers designation

WKP23S

ID Technical product number

6529443

IFS Insert mounting style code

7 - Prismatic clamping, concave

IH Insert hand

N - Neutral

INSL Insert length

24 mm

Interface codes

J6 / J61

ISO

WR$$GX2430407$$EX40

ISYC Subclass

202-03 - Insert, two cutting edges for grooving and parting, self clamping

LOC-03 ISO

WR$$GX2430407$$EX40

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

W-GX2430407$$EX40

Name Identifying order number

GX24-3E400N08-UF4 WKP23S

NOF Flute count

PFS Profile form

REL Corner radius left hand

0.8 mm

RER Corner radius right hand

0.8 mm

TCE Tipped cutting edge code

Working process

DDA - External turning,DDI - Internal turning,DEA - Outer diameter grooving,DEI - Grooving,DIE - Grooving,DSS - Face grooving

WT Weight of item

0.005 kg

Главный задний угол (AN) / Clearance angle major (AN)

10 Degree
