Главная Каталог продукции Toolunited 16 202-03 - Insert, two cutting edges for grooving and parting, self clamping GX16-2S1.00R WTA33

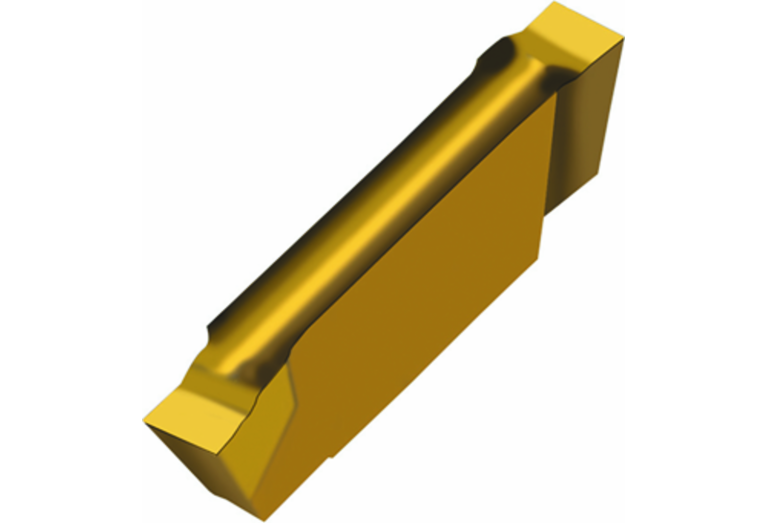

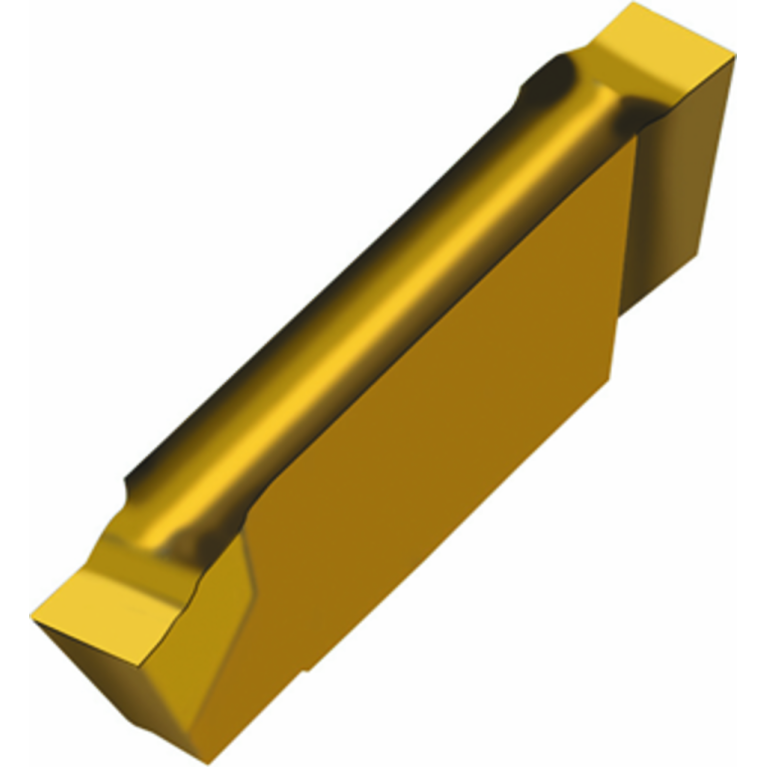

GX16-2S1.00R WTA33

Артикул: 5009893

В наличии

В корзину

Описание

Характеристики

CB Chip breaker face count

0 - Without chip breaker

CBMD Chip breaker manufacturers designation

UA4

COMPC Company code

W - Walter

CW Cutting width

1 mm

Delivery state valid from

12/1/2023

DIN

W-GX1620007$$SS$$

FamilyProducts

Grooving of circlip grooves – cutting inserts GX

GRDMFG Grade manufacturers designation

WTA33

ID Technical product number

5009893

IFS Insert mounting style code

7 - Prismatic clamping, concave

IH Insert hand

R - Right

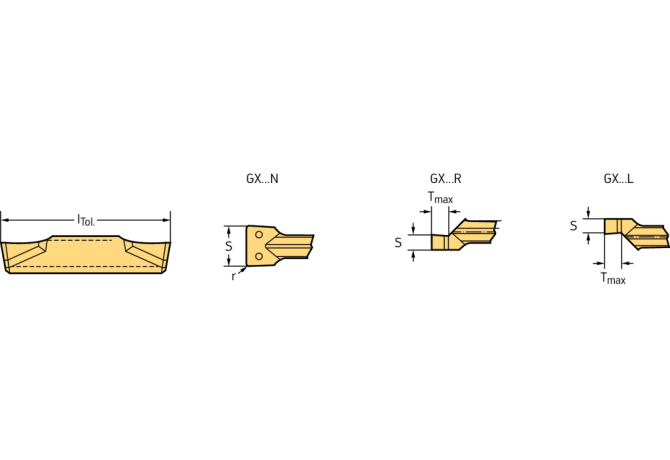

INSL Insert length

16 mm

Interface codes

J6 / J61

ISO

WR$$GX1620007$$SS$$

ISYC Subclass

202-03 - Insert, two cutting edges for grooving and parting, self clamping

LOC-03 ISO

WR$$GX1620007$$SS$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

W-GX1620007$$SS$$

Materials

P,M,K

Name Identifying order number

GX16-2S1.00R WTA33

NOF Flute count

PFS Profile form

REL Corner radius left hand

0 mm

RER Corner radius right hand

0 mm

STDDES Standard designation

GX16-2S1.00R

TCE Tipped cutting edge code

Working process

DEA - Outer diameter grooving,DIE - Grooving,DSS - Face grooving

WT Weight of item

0.002 kg

Главный задний угол (AN) / Clearance angle major (AN)

21 Degree
