Главная Каталог продукции Toolunited 16 202-03 - Insert, two cutting edges for grooving and parting, self clamping GX16-1E200N10-RD4 WKP23S

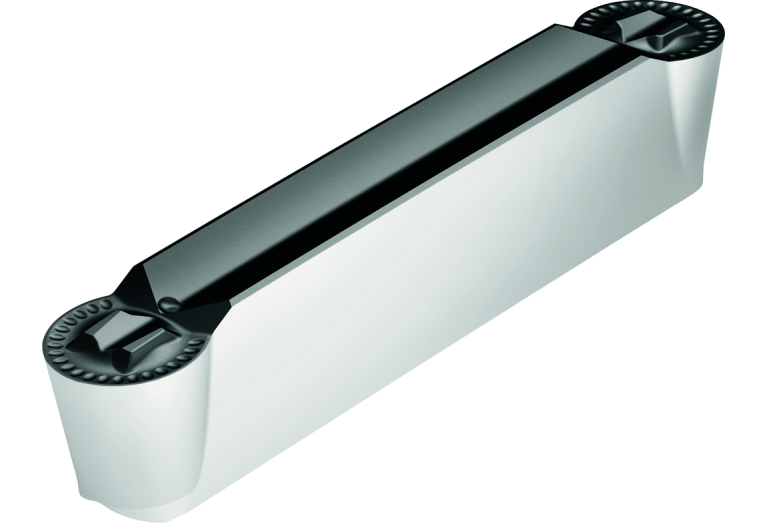

GX16-1E200N10-RD4 WKP23S

Артикул: 6529721

В наличии

В корзину

Описание

Характеристики

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

RD4

COATN Coating / Покрытие

TiCN+Al2O3+(TiCN)

COMPC Company code

W - Walter

CRE Spot radius

1 mm

CW Cutting width

2 mm

Delivery state valid from

12/1/2023

DIN

W-GX1610007$$EX$$

FamilyProducts

Grooving and copy turning – cutting inserts GX

GRDMFG Grade manufacturers designation

WKP23S

ID Technical product number

6529721

IFS Insert mounting style code

7 - Prismatic clamping, concave

IH Insert hand

N - Neutral

INSL Insert length

16 mm

Interface codes

J6 / J61

ISO

WR$$GX1610007$$EX$$

ISYC Subclass

202-03 - Insert, two cutting edges for grooving and parting, self clamping

LOC-03 ISO

WR$$GX1610007$$EX$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

W-GX1610007$$EX$$

Name Identifying order number

GX16-1E200N10-RD4 WKP23S

NOF Flute count

PFS Profile form

TCE Tipped cutting edge code

Working process

DDA - External turning,DDI - Internal turning,DEA - Outer diameter grooving,DEI - Grooving,DIE - Grooving,DSS - Face grooving

WT Weight of item

0.001 kg

Главный задний угол (AN) / Clearance angle major (AN)

21 Degree
