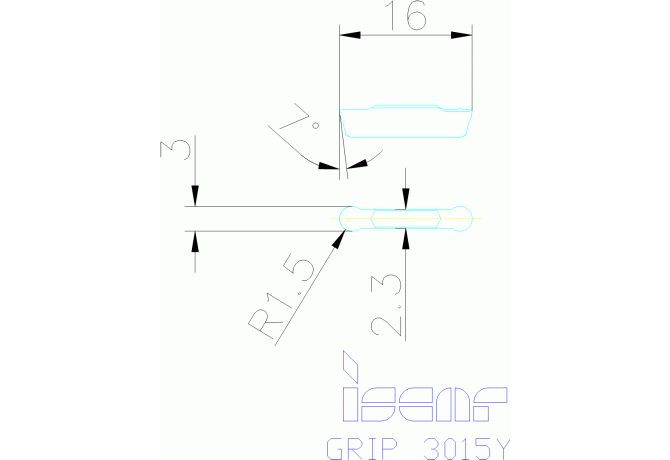

GRIP 3015Y IC418

Артикул: 6200217

В наличии

В корзину

Описание

Характеристики

CB Chip breaker face count

0 - Without chip breaker

COATN Coating / Покрытие

CVD

COMPC Company code

IS - Iscar

CRE Spot radius

1.5 mm

CW Cutting width

3 mm

CWLD Cutting width lower deviation

-0.03 mm

CWUD Cutting width upper deviation

0.03 mm

Delivery state valid from

12/1/2014

FamilyProducts

GRIP 3015Y IC418

GRD2ND Standard designation of the grade 2nd application

HC-K25

GRDMFG Grade manufacturers designation

IC418

GRDPRIO Standard designation of the grade main application

HC-K10

ID Technical product number

6200217

IFS Insert mounting style code

7 - Prismatic clamping, concave

INSL Insert length

16 mm

Interface codes

ISYC Subclass

202-03 - Insert, two cutting edges for grooving and parting, self clamping

Name Identifying order number

GRIP 3015Y IC418

NOF Flute count

NT Tooth count

PFS Profile form

REL Corner radius left hand

1.5 mm

RER Corner radius right hand

1.5 mm

W1 Insert width

2.1 mm

Working process

DEA - Outer diameter grooving
