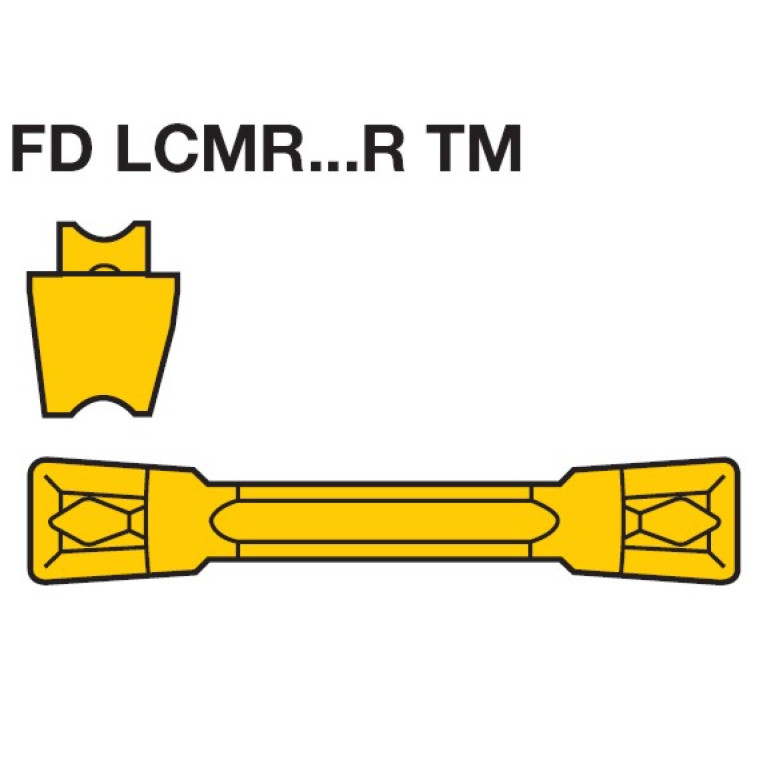

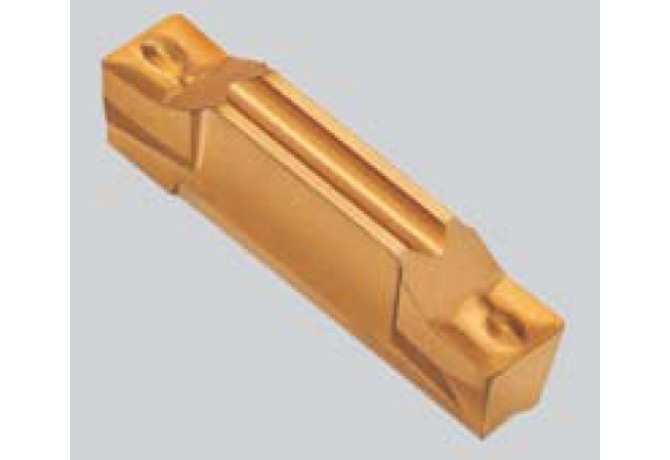

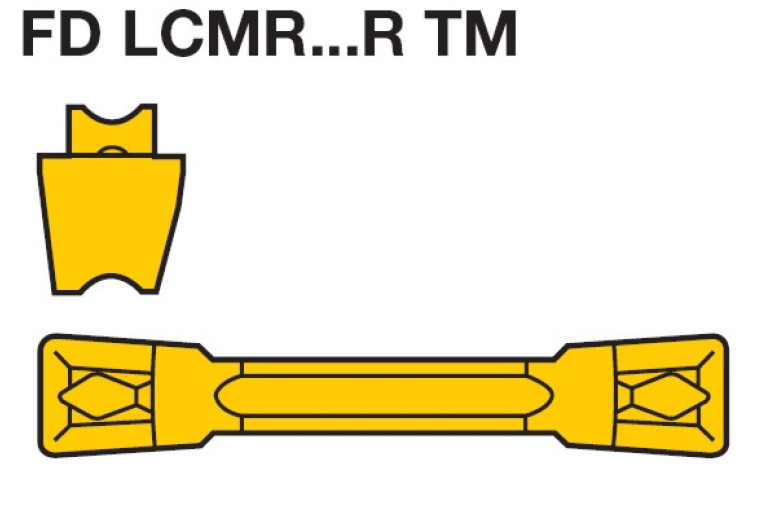

FD LCMR 4.00-0.4R TM LW612

Артикул: FD LCMR 4.00-0.4R TM LW612

В наличии

В корзину

Описание

Характеристики

CB Chip breaker face count

1 - With chip breaker one-side

COMPC Company code

BK - Boehlerit

CW Cutting width

4 mm

Delivery state valid from

036

DIN

BK-FDLCMRTM

FamilyProducts

Wendeplatten für Axial Einstechen und Stechdrehen

GRDMFG Grade manufacturers designation

LW612

ID Technical product number

FD LCMR 4.00-0.4R TM LW612

IFS Insert mounting style code

7 - Prismatic clamping, concave

IH Insert hand

R - Right

INSL Insert length

20 mm

Interface codes

J6 /

ISYC Subclass

202-03 - Insert, two cutting edges for grooving and parting, self clamping

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

BK-FDLCMRTM

Name Identifying order number

FD LCMR 4.00-0.4R TM LW612

NOF Flute count

NT Tooth count

PFS Profile form

RER Corner radius right hand

0.4 mm

STDDES Standard designation

FD LCMR 4.00-0.4R TM

W1 Insert width

3 mm

Working process

DEA - Outer diameter grooving,DSS - Face grooving

Главный задний угол (AN) / Clearance angle major (AN)

7 Degree
