Главная Каталог продукции Toolunited 16 202-08 - Lay-down threading insert, triangle shape, three cutting edges, one tooth SNT6004R22MM UTi20T

SNT6004R22MM UTi20T

Артикул: SNT6004R22MM UTi20T

В наличии

В корзину

Описание

Характеристики

CB Chip breaker face count

1 - With chip breaker one-side

COMPC Company code

MI - Mitsubishi Materials

CRE Spot radius

0.04 mm

Delivery state valid from

4/1/2022

DIN

MI-SNT R22

FamilyProducts

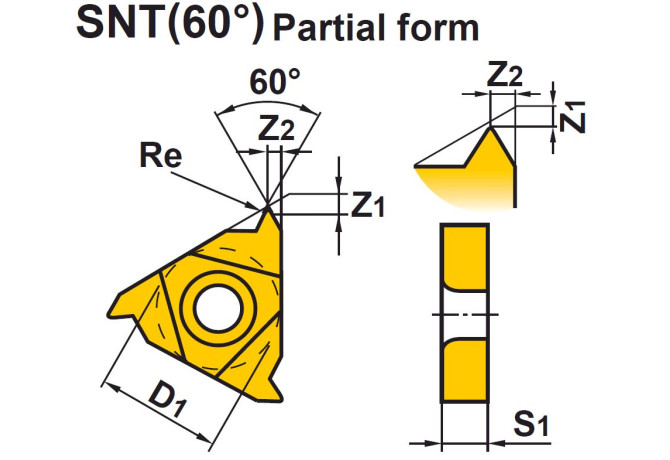

M-CLASS INSERT, int., SNT 60° partial form

GRD2ND Standard designation of the grade 2nd application

CM-P30

GRD3RD Standard designation of the grade 3rd application

CM-M30

GRDMFG Grade manufacturers designation

UTi20T

GRDPRIO Standard designation of the grade main application

CM-P20

IC Inscribed circle diameter

6.35 mm

IH Insert hand

R - Right

Interface codes

J6 /

ISYC Subclass

202-08 - Lay-down threading insert, triangle shape, three cutting edges, one tooth

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

MI-SNT R22

Name Identifying order number

SNT6004R22MM UTi20T

NOF Flute count

NT Tooth count

PDPT Profile depth insert

0.7 mm

PDX Profile distance X

0.9 mm

PFS Profile form

PSIRL Cutting edge angle major left hand

60 Degree

PSIRR Cutting edge angle major right hand

60 Degree

STDDES Standard designation

SNT6004R22MM

TPIN Threads per inch minimum

TPIX Threads per inch maximum

TPN Thread pitch minimum

0.5 mm

TPT Thread profile type

T - Partial profile

TPX Thread pitch maximum

1.5 mm

TTP Thread type

I - Internal thread

Working process

DGI - Thread turning, internal
