Главная Каталог продукции Toolunited 16 202-08 - Lay-down threading insert, triangle shape, three cutting edges, one tooth SMTTR160360V5 UTi20T

SMTTR160360V5 UTi20T

Артикул: SMTTR160360V5 UTi20T

В наличии

В корзину

Описание

Характеристики

CB Chip breaker face count

0 - Without chip breaker

COMPC Company code

MI - Mitsubishi Materials

CRE Spot radius

0.05 mm

Delivery state valid from

4/1/2022

DIN

MI-SMTTR160360

FamilyProducts

SM INSERT (Threading)

GRD2ND Standard designation of the grade 2nd application

CM-P30

GRD3RD Standard designation of the grade 3rd application

CM-M30

GRDMFG Grade manufacturers designation

UTi20T

GRDPRIO Standard designation of the grade main application

CM-P20

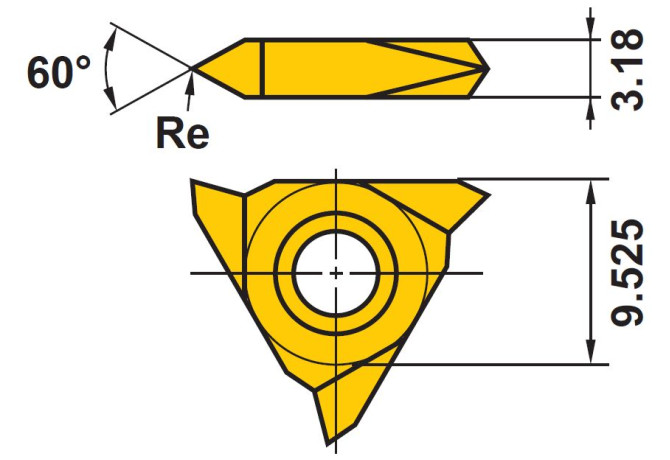

IC Inscribed circle diameter

9.525 mm

IH Insert hand

R - Right

Interface codes

J6 /

ISYC Subclass

202-08 - Lay-down threading insert, triangle shape, three cutting edges, one tooth

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

MI-SMTTR160360

Name Identifying order number

SMTTR160360V5 UTi20T

NOF Flute count

NT Tooth count

PFS Profile form

PSIRL Cutting edge angle major left hand

60 Degree

PSIRR Cutting edge angle major right hand

60 Degree

STDDES Standard designation

SMTTR160360V5

TPT Thread profile type

T - Partial profile

TPX Thread pitch maximum

0.8 mm

TTP Thread type

A - External thread

Working process

DEA - Outer diameter grooving,DGA - Thread turning, external
