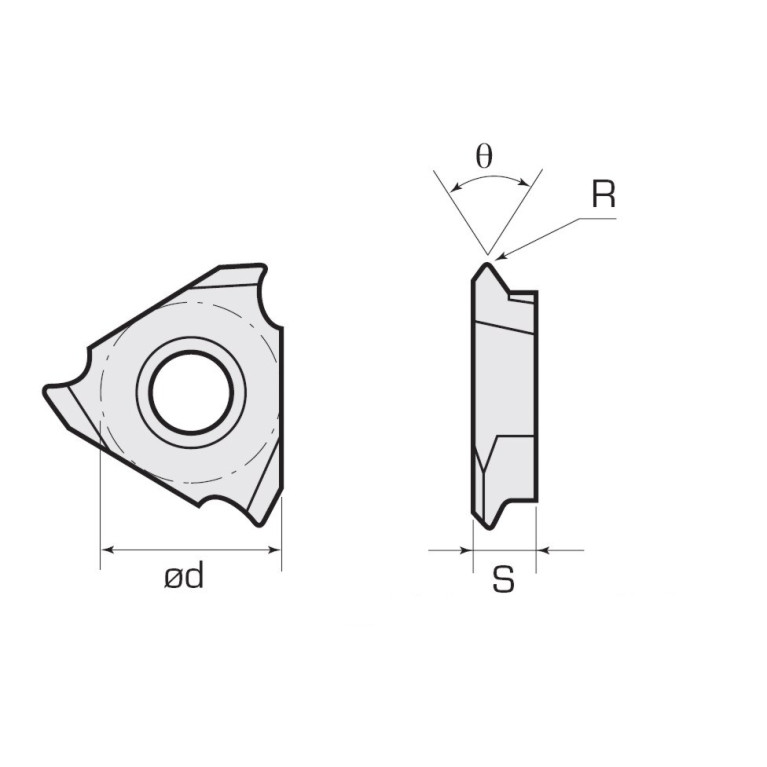

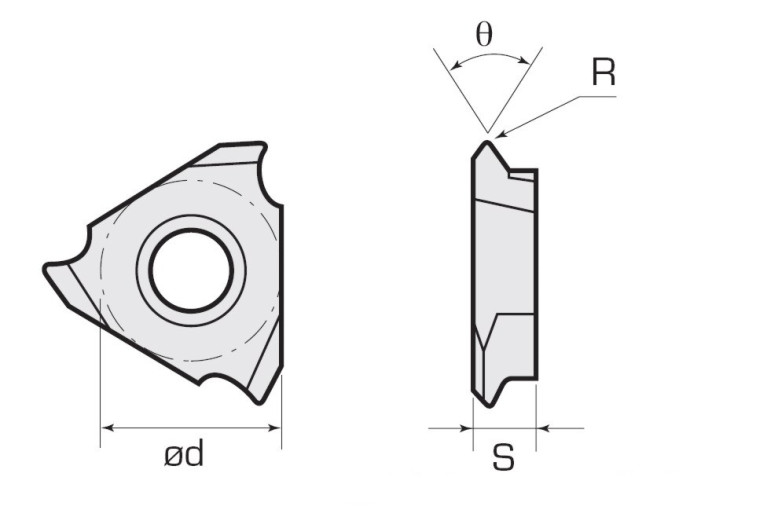

Главная Каталог продукции Toolunited 16 202-08 - Lay-down threading insert, triangle shape, three cutting edges, one tooth JTTL3005F J740

JTTL3005F J740

Артикул: 6831345

В наличии

В корзину

Описание

Характеристики

COATN Coating / Покрытие

Coated

COMPC Company code

TT - Tungaloy

D1 Fixing hole diameter

4.1 mm

Delivery state valid from

8/24/2006

DIN

TT-JTTL3*

FamilyProducts

JTT-type inserts for threading (sharp cutting edge

GRDMFG Grade manufacturers designation

J740

IC Inscribed circle diameter

9.525 mm

ID Technical product number

6831345

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

L - Left

Interface codes

J6 /

ISYC Subclass

202-08 - Lay-down threading insert, triangle shape, three cutting edges, one tooth

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

TT-JTTL3*

Name Identifying order number

JTTL3005F J740

NOF Flute count

NT Tooth count

PFS Profile form

PSIRL Cutting edge angle major left hand

60 Degree

PSIRR Cutting edge angle major right hand

60 Degree

REL Corner radius left hand

0.05 mm

RER Corner radius right hand

0.05 mm

TTP Thread type

A - External thread

W1 Insert width

3.18 mm

Working process

No working processes available
