Главная Каталог продукции Toolunited 16 202-08 - Lay-down threading insert, triangle shape, three cutting edges, one tooth B16JJER28W LC610W

B16JJER28W LC610W

Артикул: B16JJER28W LC610W

В наличии

В корзину

Описание

Характеристики

COMPC Company code

BK - Boehlerit

Delivery state valid from

2/1/2009

DIN

BK-GS16ER

FamilyProducts

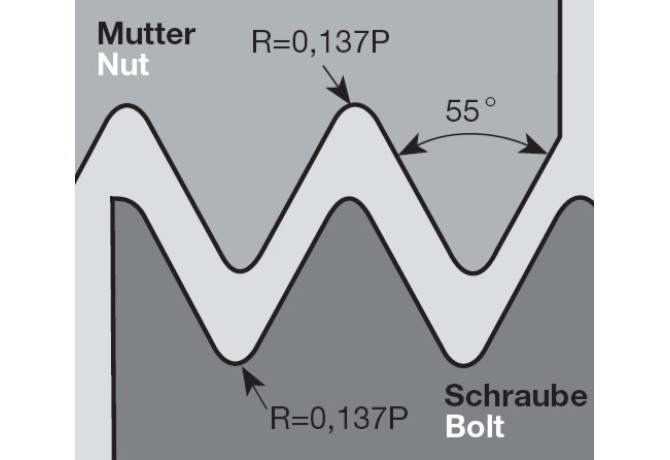

External Thread BSW, BSP Full Profile

GRDMFG Grade manufacturers designation

LC610W

IC Inscribed circle diameter

9.52 mm

ID Technical product number

B16JJER28W LC610W

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

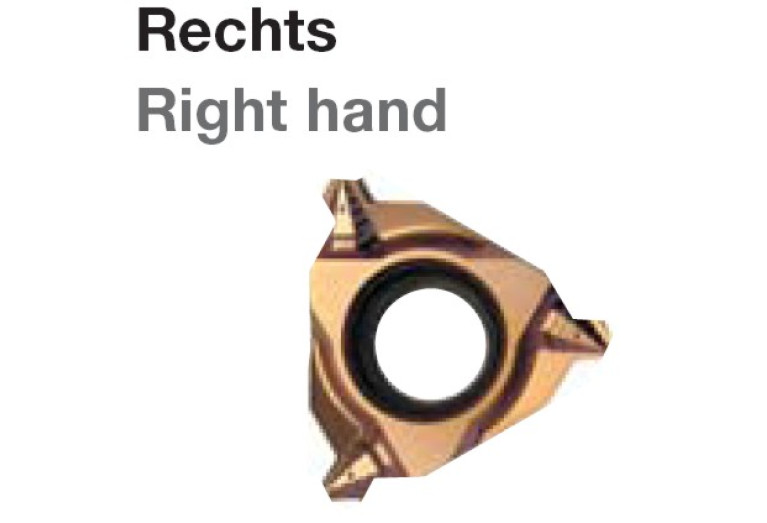

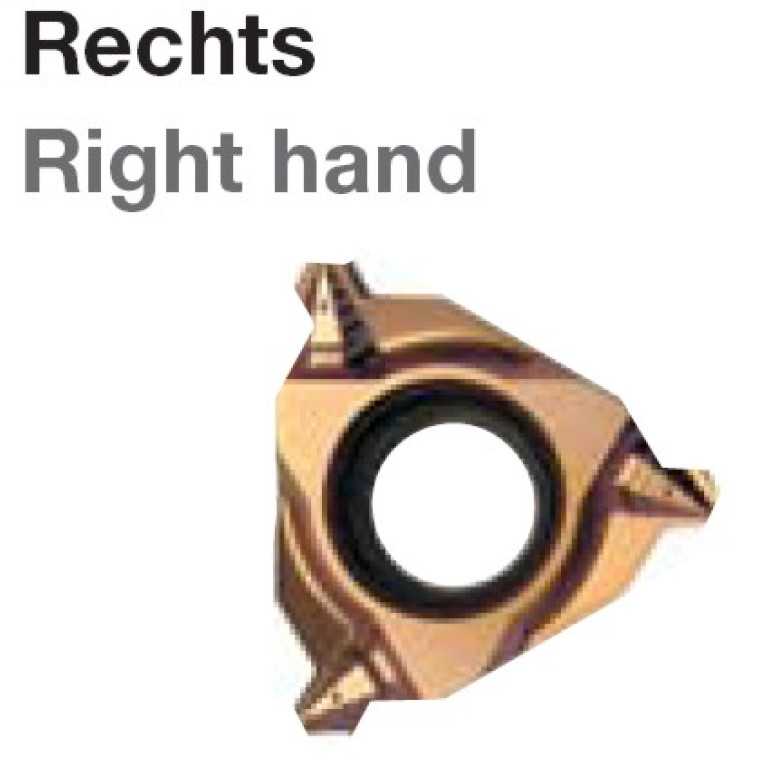

IH Insert hand

R - Right

INSL Insert length

16 mm

Interface codes

J6 /

ISYC Subclass

202-08 - Lay-down threading insert, triangle shape, three cutting edges, one tooth

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

BK-GS16ER

Materials

P,M,K

Name Identifying order number

B16JJER28W LC610W

NOF Flute count

NT Tooth count

PDPT Profile depth insert

0.6 mm

PDX Profile distance X

0.7 mm

PFS Profile form

STDDES Standard designation

B16JJER28W

TPIN Threads per inch minimum

TPIX Threads per inch maximum

TPT Thread profile type

V - Full profile

TTP Thread type

A - External thread

Working process

DGA - Thread turning, external
