B16IR19W LC620N

Артикул: 6402580

В наличии

В корзину

Описание

Характеристики

COMPC Company code

BK - Boehlerit

Delivery state valid from

12/1/2006

DIN

BK-GS16IR

FamilyProducts

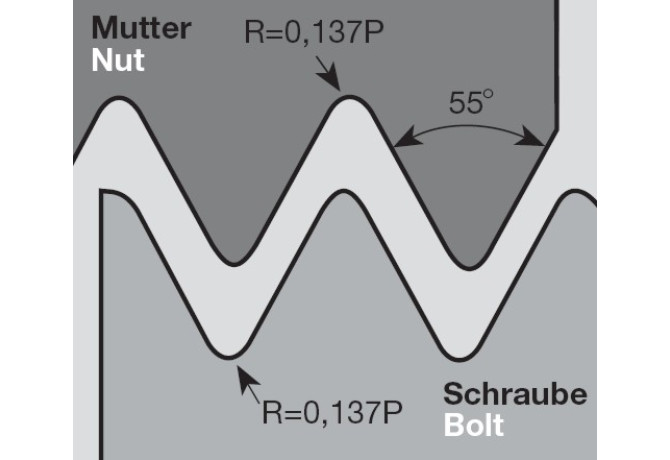

BSW, BSP full profil internal

GRDMFG Grade manufacturers designation

LC620N

IC Inscribed circle diameter

9.52 mm

ID Technical product number

6402580

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

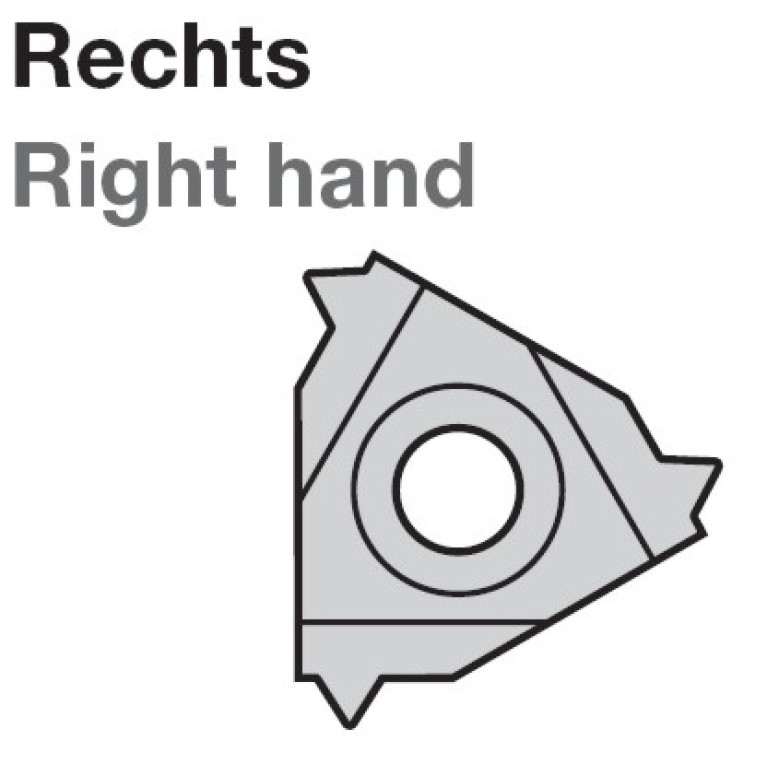

IH Insert hand

R - Right

INSL Insert length

16 mm

Interface codes

J6 /

ISYC Subclass

202-08 - Lay-down threading insert, triangle shape, three cutting edges, one tooth

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

BK-GS16IR

Materials

P,M,K

Name Identifying order number

B16IR19W LC620N

NOF Flute count

NT Tooth count

PFS Profile form

STDDES Standard designation

B16IR19W

TPIN Threads per inch minimum

TPIX Threads per inch maximum

TPT Thread profile type

V - Full profile

TTP Thread type

I - Internal thread

Working process

DGI - Thread turning, internal
