Главная Каталог продукции Toolunited 16 202-08 - Lay-down threading insert, triangle shape, three cutting edges, one tooth B16IR1,5TR LW220

B16IR1,5TR LW220

Артикул: B16IR1,5TR LW220

В наличии

В корзину

Описание

Характеристики

COMPC Company code

BK - Boehlerit

Delivery state valid from

040

DIN

BK-GS16ER

FamilyProducts

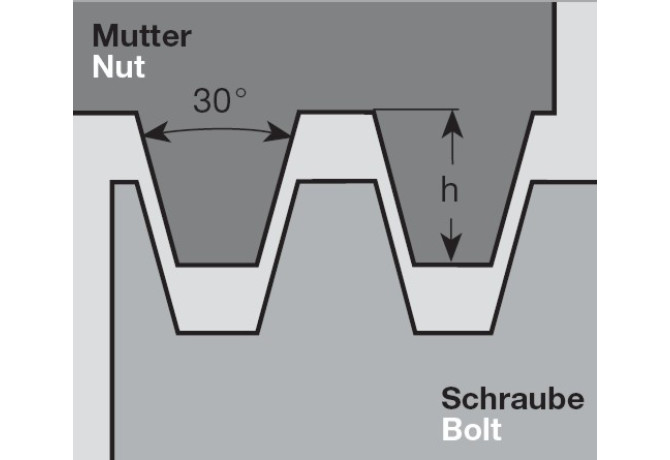

Trapez threads DIN 103 internal

GRDMFG Grade manufacturers designation

LW220

IC Inscribed circle diameter

9.52 mm

ID Technical product number

B16IR1,5TR LW220

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

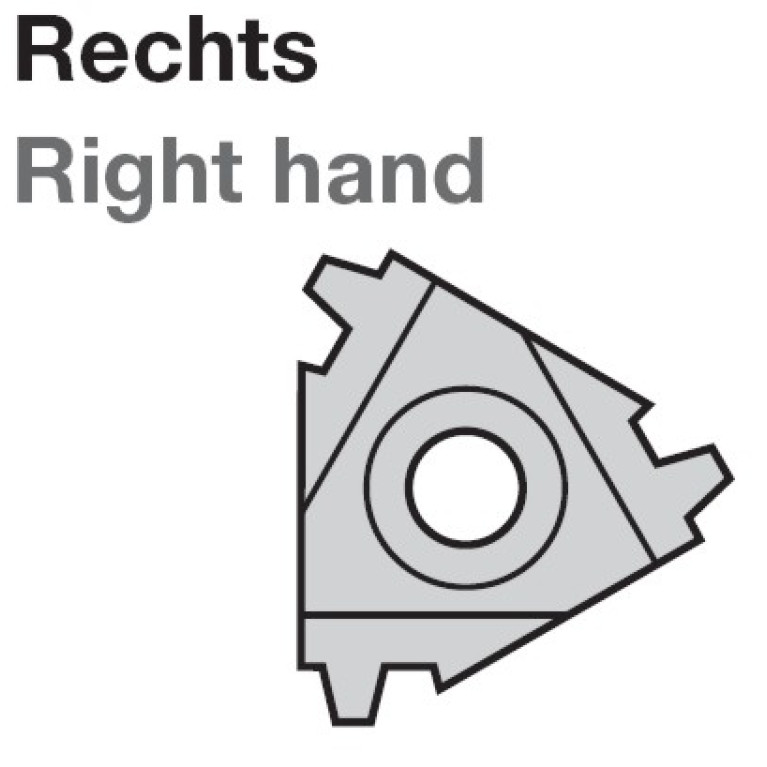

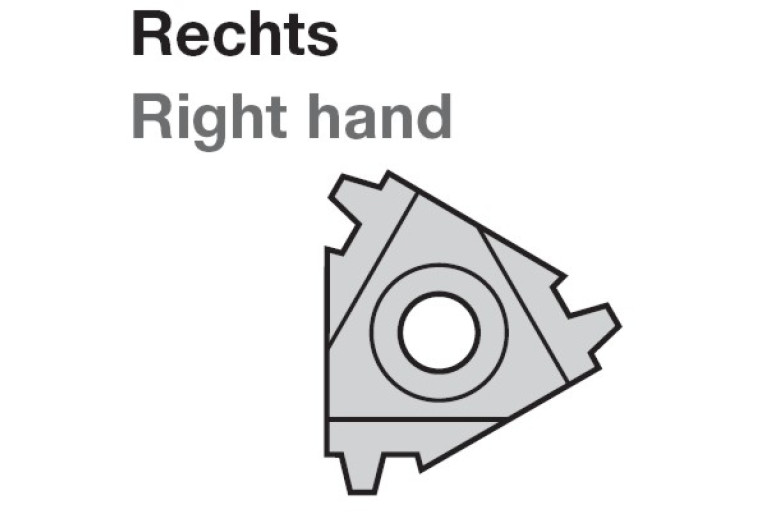

IH Insert hand

R - Right

INSL Insert length

16 mm

Interface codes

J6 /

ISYC Subclass

202-08 - Lay-down threading insert, triangle shape, three cutting edges, one tooth

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

BK-GS16ER

Name Identifying order number

B16IR1,5TR LW220

NOF Flute count

NT Tooth count

PFS Profile form

STDDES Standard designation

B16IR1,5TR

TPN Thread pitch minimum

1.5 mm

TPT Thread profile type

V - Full profile

TPX Thread pitch maximum

1.5 mm

TTP Thread type

I - Internal thread

Working process

DGA - Thread turning, external
