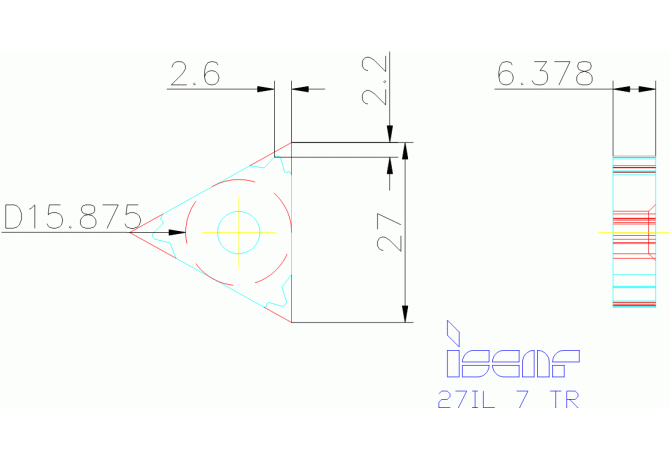

Главная Каталог продукции Toolunited 16 202-08 - Lay-down threading insert, triangle shape, three cutting edges, one tooth 27IL 7 TR IC250

27IL 7 TR IC250

Артикул: 5902107

В наличии

В корзину

Описание

Характеристики

CB Chip breaker face count

0 - Without chip breaker

COATN Coating / Покрытие

TiN

COMPC Company code

IS - Iscar

Delivery state valid from

12/1/2014

DIN

IS-27IL

FamilyProducts

27IL 7 TR IC250

GRD2ND Standard designation of the grade 2nd application

HC-P35

GRD3RD Standard designation of the grade 3rd application

HC-M40

GRDMFG Grade manufacturers designation

IC250

GRDPRIO Standard designation of the grade main application

HC-P15

IC Inscribed circle diameter

15.88 mm

ID Technical product number

5902107

IH Insert hand

L - Left

INSL Insert length

27 mm

Interface codes

J6 /

ISYC Subclass

202-08 - Lay-down threading insert, triangle shape, three cutting edges, one tooth

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

IS-27IL

Name Identifying order number

27IL 7 TR IC250

NOF Flute count

NT Tooth count

PDPT Profile depth insert

2.2 mm

PFS Profile form

STDDES Standard designation

27IL 7 TR

THFT Thread form type

TPN Thread pitch minimum

2.6 mm

TTP Thread type

I - Internal thread

Working process

DGI - Thread turning, internal
