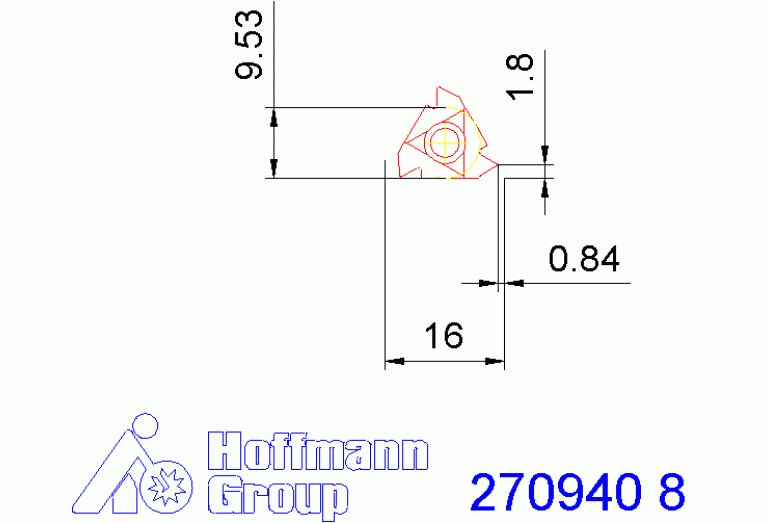

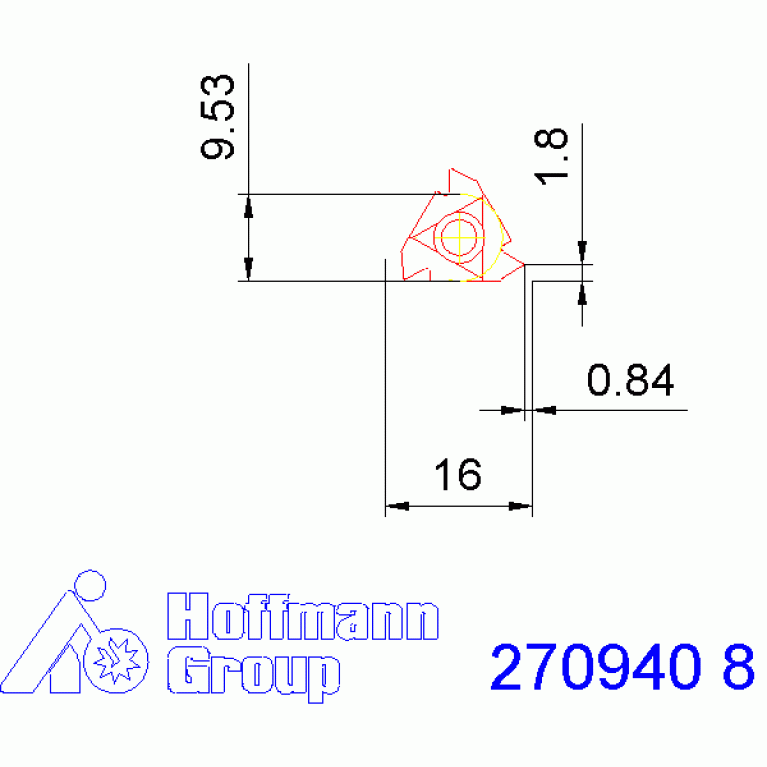

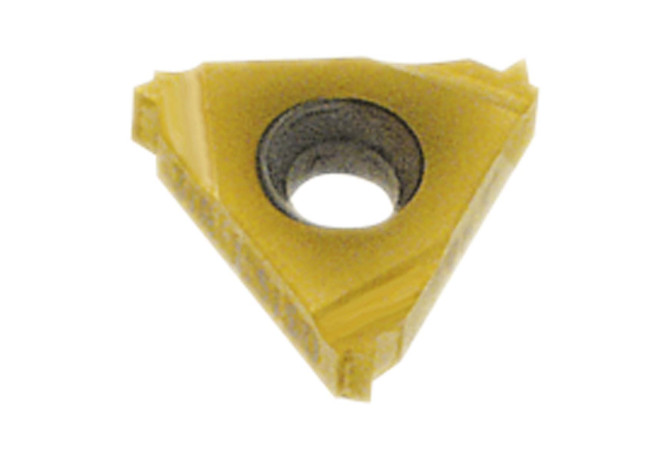

Главная Каталог продукции Toolunited 16 202-08 - Lay-down threading insert, triangle shape, three cutting edges, one tooth 270940 8

270940 8

Артикул: 270940 8

В наличии

В корзину

Описание

Характеристики

CB Chip breaker face count

0 - Without chip breaker

COMPC Company code

HOG - Hoffmann Group

CRE Spot radius

0.136 mm

Delivery state valid from

1/11/2017

DIN

HOG-RERE1616XX

FamilyProducts

GARANT Full profile insert 60°, internal, right-hand

GAN Insert rake angle

12 Degree

GRDMFG Grade manufacturers designation

HB7010

IC Inscribed circle diameter

9.525 mm

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

INSL Insert length

16 mm

Interface codes

J6 /

ISYC Subclass

202-08 - Lay-down threading insert, triangle shape, three cutting edges, one tooth

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

HOG-RERE1616XX

Name Identifying order number

270940 8

NOF Flute count

NT Tooth count

PDPT Profile depth insert

2.42 mm

PDX Profile distance X

1.8 mm

PDY Profile distance Y

1.3 mm

PFS Profile form

PNA Profile included angle

60 Degree

S1 Insert thickness total

3.6 mm

THFT Thread form type

NPT

TPIN Threads per inch minimum

TPIX Threads per inch maximum

TPT Thread profile type

V - Full profile

TTP Thread type

A - External thread

W1 Insert width

3.6 mm

Working process

DGA - Thread turning, external

WT Weight of item

0.007 kg
