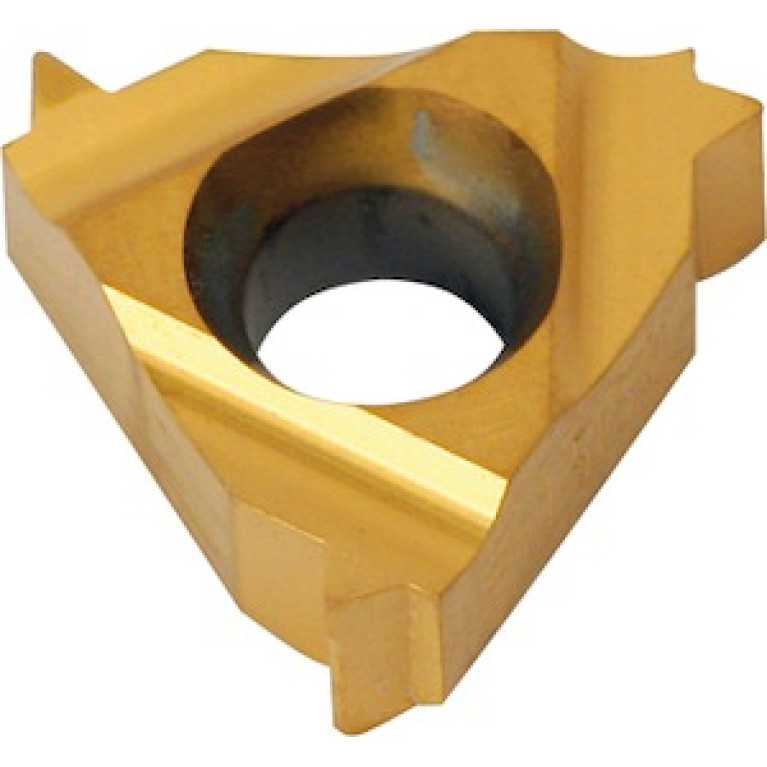

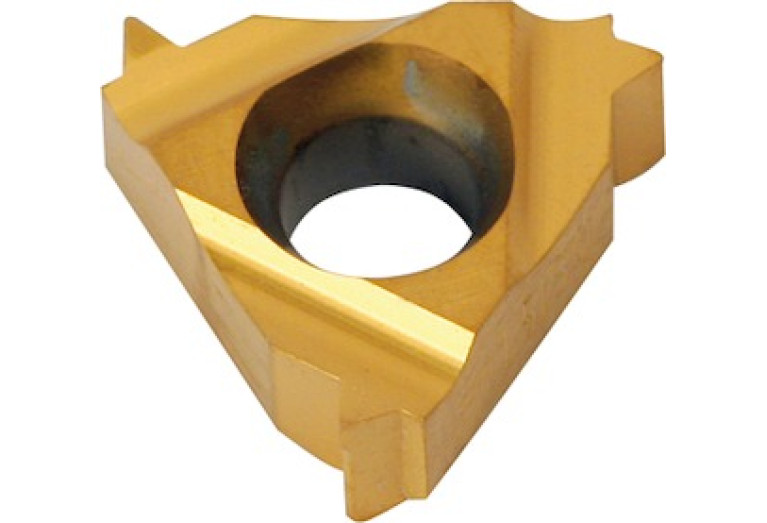

Главная Каталог продукции Toolunited 16 202-08 - Lay-down threading insert, triangle shape, three cutting edges, one tooth 270772 0,7

270772 0,7

Артикул: 270772 0,7

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

COMPC Company code

HOG - Hoffmann Group

Delivery state valid from

1/11/2017

DIN

HOG-LILI1111XX

FamilyProducts

GARANT Full profile insert 60° internal, left-hand

GAN Insert rake angle

10 Degree

GRDMFG Grade manufacturers designation

HB7010

IC Inscribed circle diameter

6.35 mm

IH Insert hand

L - Left

Interface codes

J6 /

ISYC Subclass

202-08 - Lay-down threading insert, triangle shape, three cutting edges, one tooth

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

HOG-LILI1111XX

Name Identifying order number

270772 0,7

NOF Flute count

NT Tooth count

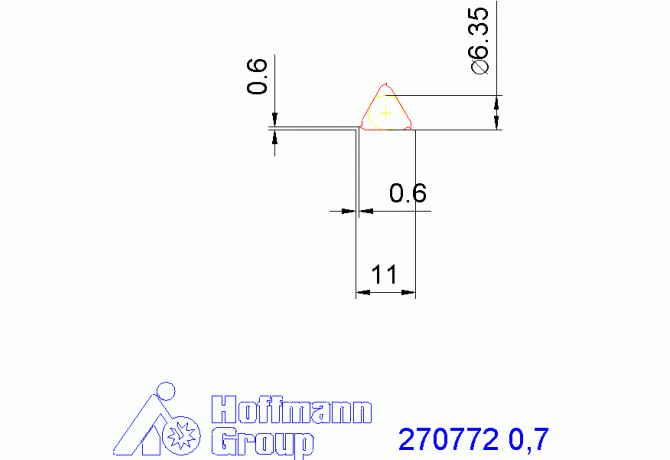

PDX Profile distance X

0.6 mm

PFS Profile form

RER Corner radius right hand

0.04 mm

S1 Insert thickness total

3.04 mm

TPN Thread pitch minimum

0 mm

TPT Thread profile type

V - Full profile

TPX Thread pitch maximum

0.7 mm

TTP Thread type

I - Internal thread

Working process

DGI - Thread turning, internal

WT Weight of item

0.002 kg
