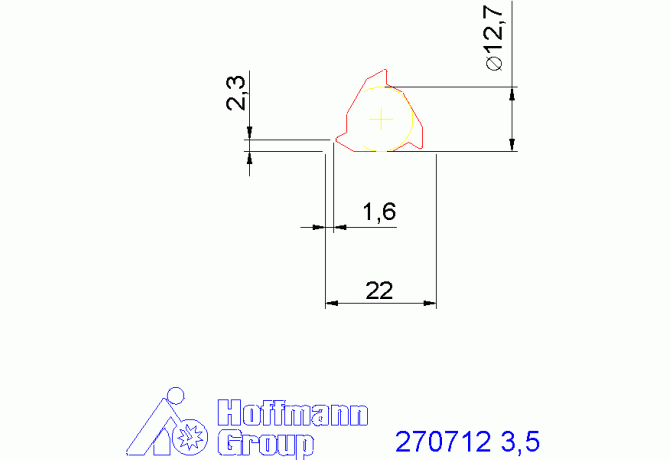

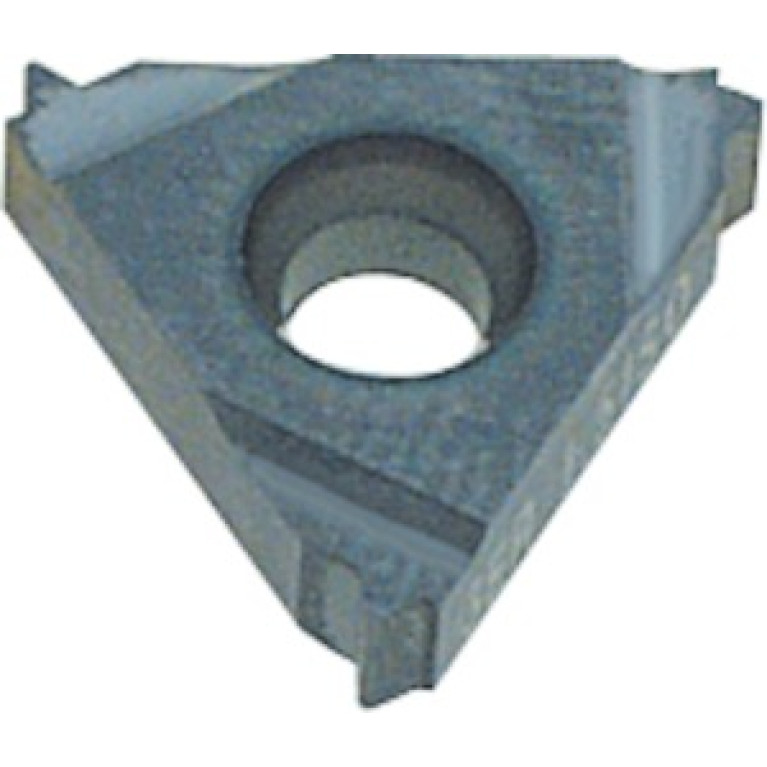

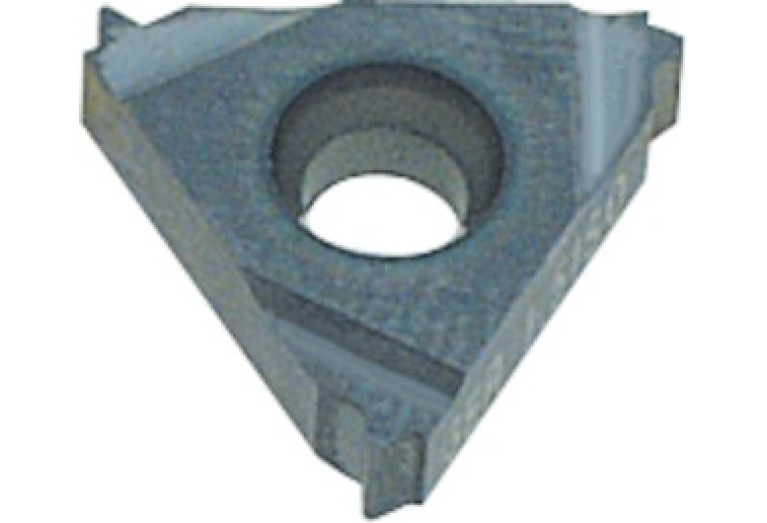

Главная Каталог продукции Toolunited 16 202-08 - Lay-down threading insert, triangle shape, three cutting edges, one tooth 270712 3,5

270712 3,5

Артикул: 270712 3,5

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

2.24 Degree

COMPC Company code

HOG - Hoffmann Group

Delivery state valid from

1/11/2017

DIN

HOG-RERE2222XX

FamilyProducts

GARANT Full profile insert 60°, external, right-hand

GAN Insert rake angle

10 Degree

GRDMFG Grade manufacturers designation

HB7020

IC Inscribed circle diameter

12.7 mm

IH Insert hand

R - Right

Interface codes

J6 /

ISYC Subclass

202-08 - Lay-down threading insert, triangle shape, three cutting edges, one tooth

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

HOG-RERE2222XX

Name Identifying order number

270712 3,5

NOF Flute count

NT Tooth count

PDX Profile distance X

2.3 mm

PFS Profile form

RER Corner radius right hand

0.45 mm

S1 Insert thickness total

4.64 mm

TPN Thread pitch minimum

0 mm

TPT Thread profile type

V - Full profile

TPX Thread pitch maximum

3.5 mm

TTP Thread type

A - External thread

Working process

DGA - Thread turning, external

WT Weight of item

0.004 kg
