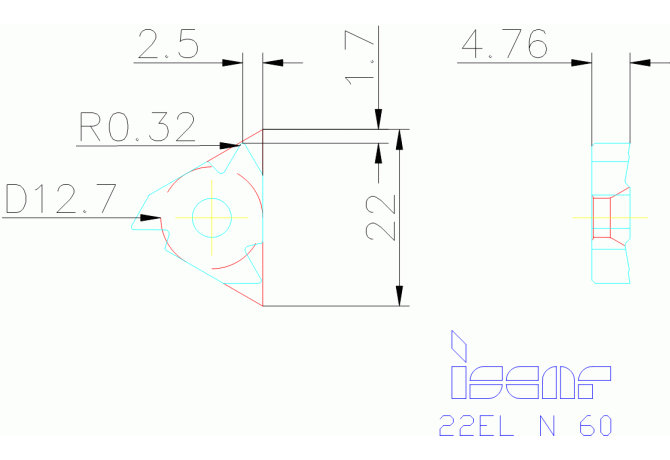

Главная Каталог продукции Toolunited 16 202-08 - Lay-down threading insert, triangle shape, three cutting edges, one tooth 22EL N 60 IC250

22EL N 60 IC250

Артикул: 5901502

В наличии

В корзину

Описание

Характеристики

CB Chip breaker face count

0 - Without chip breaker

COATN Coating / Покрытие

TiN

COMPC Company code

IS - Iscar

Delivery state valid from

12/1/2014

DIN

IS-22EL

FamilyProducts

22EL N 60 IC250

GRD2ND Standard designation of the grade 2nd application

HC-P35

GRD3RD Standard designation of the grade 3rd application

HC-M40

GRDMFG Grade manufacturers designation

IC250

GRDPRIO Standard designation of the grade main application

HC-P15

IC Inscribed circle diameter

12.7 mm

ID Technical product number

5901502

IH Insert hand

L - Left

INSL Insert length

22 mm

Interface codes

J6 /

ISYC Subclass

202-08 - Lay-down threading insert, triangle shape, three cutting edges, one tooth

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

IS-22EL

Name Identifying order number

22EL N 60 IC250

NOF Flute count

NT Tooth count

PDPT Profile depth insert

1.7 mm

PFS Profile form

REL Corner radius left hand

0.32 mm

RER Corner radius right hand

0.32 mm

STDDES Standard designation

22EL N 60

THFT Thread form type

N60

TPN Thread pitch minimum

2.5 mm

TTP Thread type

A - External thread

Working process

DGA - Thread turning, external
