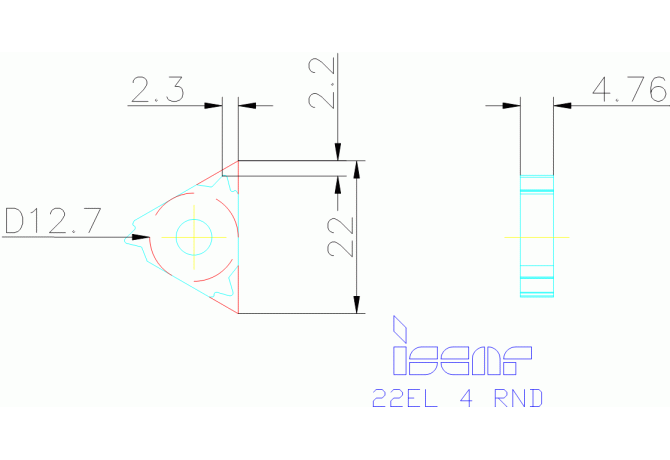

Главная Каталог продукции Toolunited 16 202-08 - Lay-down threading insert, triangle shape, three cutting edges, one tooth 22EL 4 RND IC250

22EL 4 RND IC250

Артикул: 5996562

В наличии

В корзину

Описание

Характеристики

CB Chip breaker face count

0 - Without chip breaker

COATN Coating / Покрытие

TiN

COMPC Company code

IS - Iscar

Delivery state valid from

12/1/2014

DIN

IS-22EL

FamilyProducts

22EL 4 RND IC250

GRD2ND Standard designation of the grade 2nd application

HC-P35

GRD3RD Standard designation of the grade 3rd application

HC-M40

GRDMFG Grade manufacturers designation

IC250

GRDPRIO Standard designation of the grade main application

HC-P15

IC Inscribed circle diameter

12.7 mm

ID Technical product number

5996562

IH Insert hand

L - Left

INSL Insert length

22 mm

Interface codes

J6 /

ISYC Subclass

202-08 - Lay-down threading insert, triangle shape, three cutting edges, one tooth

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

IS-22EL

Name Identifying order number

22EL 4 RND IC250

NOF Flute count

NT Tooth count

PDPT Profile depth insert

2.2 mm

PFS Profile form

STDDES Standard designation

22EL 4 RND

THFT Thread form type

TPIN Threads per inch minimum

TPIX Threads per inch maximum

TPN Thread pitch minimum

2.3 mm

TTP Thread type

A - External thread

Working process

DGA - Thread turning, external
