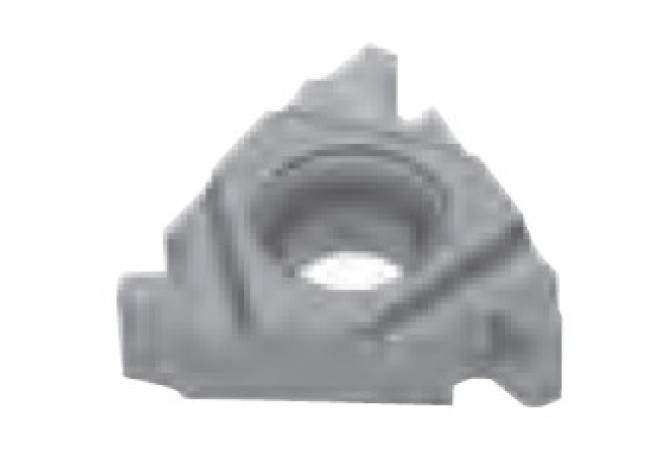

Главная Каталог продукции Toolunited 16 202-08 - Lay-down threading insert, triangle shape, three cutting edges, one tooth 16ER8ACME AH725

16ER8ACME AH725

Артикул: 6859638

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

ANL Clearance angle flank left hand

0 Degree

ANR Clearance angle flank right hand

0 Degree

CB Chip breaker face count

0 - Without chip breaker

COATN Coating / Покрытие

PVD

COMPC Company code

TT - Tungaloy

Delivery state valid from

4/1/2013

DIN

TT-16ER

FamilyProducts

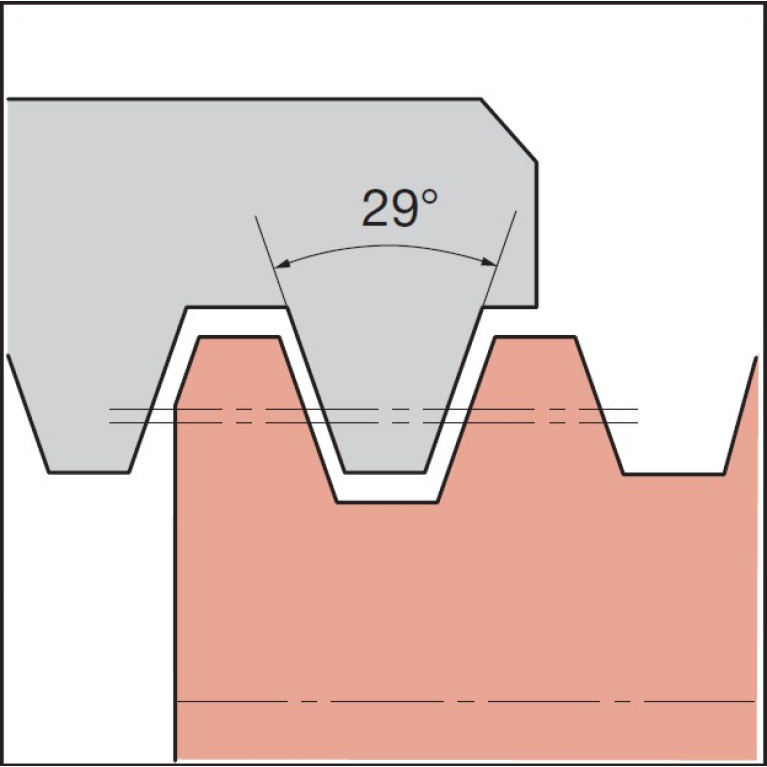

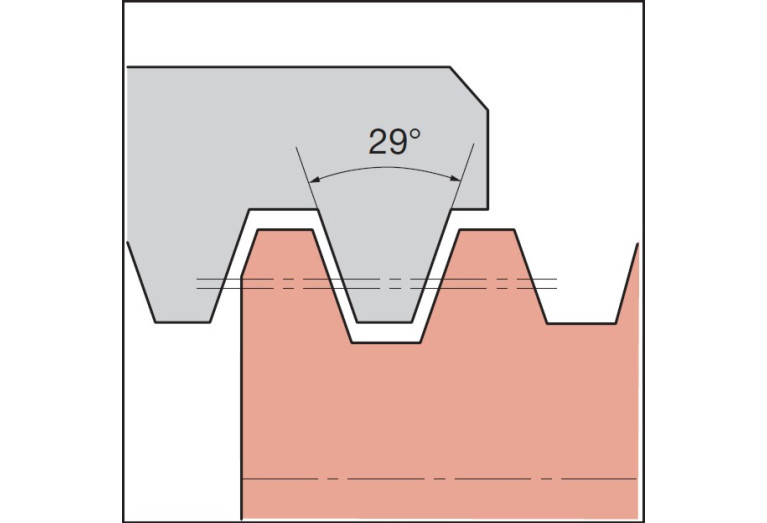

threading insert, 29° trapezoidal thread (ACME)

GRDMFG Grade manufacturers designation

AH725

IC Inscribed circle diameter

9.525 mm

ID Technical product number

6859638

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

Interface codes

J6 /

ISYC Subclass

202-08 - Lay-down threading insert, triangle shape, three cutting edges, one tooth

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

TT-16ER

Name Identifying order number

16ER8ACME AH725

NOF Flute count

NT Tooth count

PDPT Profile depth insert

1.3 mm

PDX Profile distance X

1.6 mm

PFS Profile form

PSIRL Cutting edge angle major left hand

75.5 Degree

PSIRR Cutting edge angle major right hand

75.5 Degree

THFT Thread form type

ACME

TPIN Threads per inch minimum

TPN Thread pitch minimum

3.175 mm

TPT Thread profile type

V - Full profile

TTP Thread type

A - External thread

Working process

DGA - Thread turning, external
