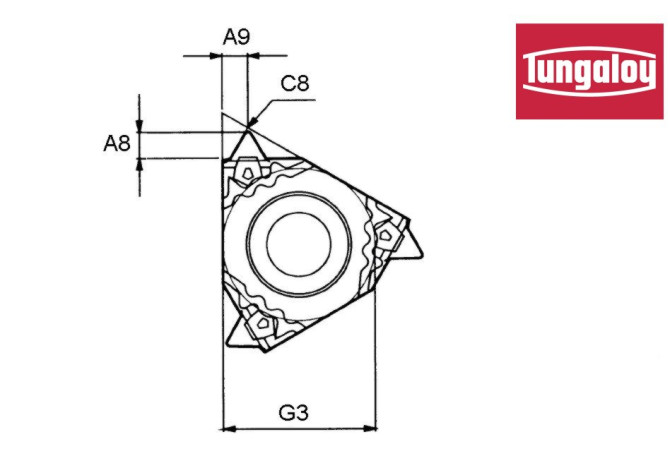

Главная Каталог продукции Toolunited 16 202-08 - Lay-down threading insert, triangle shape, three cutting edges, one tooth 16ER18W AH725

16ER18W AH725

Артикул: 6859625

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CF Spot chamfer

0.35275 mm

COMPC Company code

TT - Tungaloy

Delivery state valid from

6/1/2013

DIN

TT-16ER

FamilyProducts

W-B, Whitworth full profile inserts

GRDMFG Grade manufacturers designation

AH725

IC Inscribed circle diameter

9.525 mm

ID Technical product number

6859625

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

Interface codes

J6 /

ISYC Subclass

202-08 - Lay-down threading insert, triangle shape, three cutting edges, one tooth

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

TT-16ER

Name Identifying order number

16ER18W AH725

NOF Flute count

NT Tooth count

PDPT Profile depth insert

0.7 mm

PDX Profile distance X

0.9 mm

PFS Profile form

PSIRL Cutting edge angle major left hand

62.5 Degree

PSIRR Cutting edge angle major right hand

62.5 Degree

REL Corner radius left hand

0.18 mm

RER Corner radius right hand

0.18 mm

THFT Thread form type

TPIN Threads per inch minimum

TPIX Threads per inch maximum

TPN Thread pitch minimum

1.411 mm

TPT Thread profile type

V - Full profile

TPX Thread pitch maximum

1.411 mm

TTP Thread type

A - External thread

Working process

DGA - Thread turning, external
