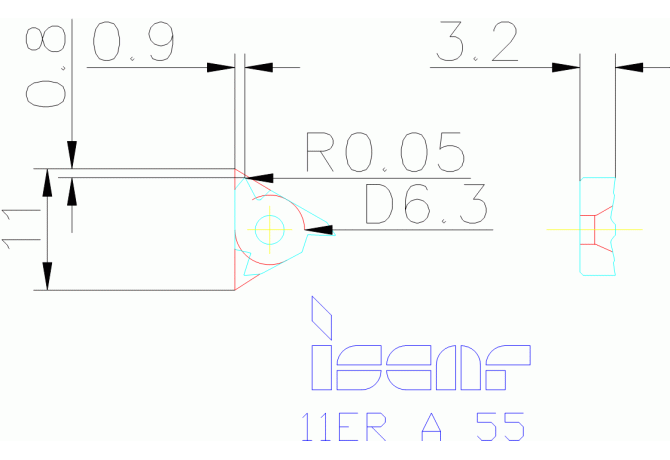

11ER A 55 IC250
11ER A 55 IC250
Артикул:
5992755
В наличии
Характеристики
CB Chip breaker face count
0 - Without chip breaker
COATN Coating
TiN
COMPC Company code
IS - Iscar
Delivery state valid from
12/1/2014
DIN
IS-11ER
FamilyProducts
11ER A 55 IC250
GRD2ND Standard designation of the grade 2nd application
HC-P35
GRD3RD Standard designation of the grade 3rd application
HC-M40
GRDMFG Grade manufacturers designation
IC250
GRDPRIO Standard designation of the grade main application
HC-P15
IC Inscribed circle diameter
6.35 mm
ID Technical product number
5992755
IH Insert hand
R - Right
INSL Insert length
11 mm
Interface codes
J6 /
ISYC Subclass
202-08 - Lay-down threading insert, triangle shape, three cutting edges, one tooth
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
IS-11ER
Name Identifying order number
11ER A 55 IC250
NOF Flute count
3
NT Tooth count
1
PDPT Profile depth insert
0.8 mm
PFS Profile form
6
REL Corner radius left hand
0.05 mm
RER Corner radius right hand
0.05 mm
STDDES Standard designation
11ER A 55
THFT Thread form type
A55
TPN Thread pitch minimum
0.9 mm
TTP Thread type
A - External thread
Working process
DGA - Thread turning, external
