08IL A 60 IC228
08IL A 60 IC228
Артикул:
5901351
В наличии
Характеристики
CB Chip breaker face count
0 - Without chip breaker
COMPC Company code
IS - Iscar
Delivery state valid from
12/1/2014
DIN
IS-08IL
FamilyProducts

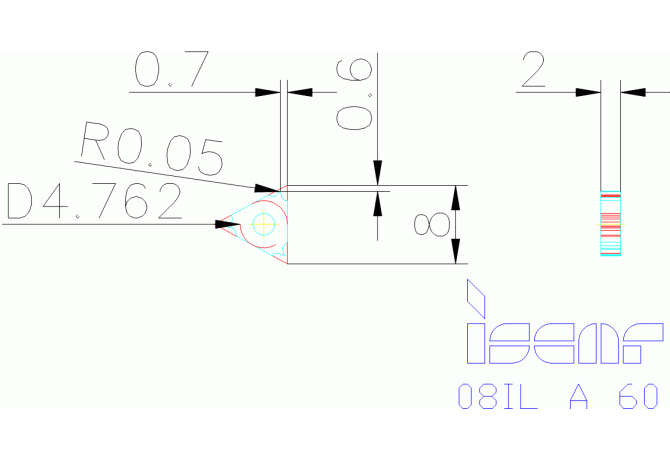

08IL A 60 IC228
GRDMFG Grade manufacturers designation
IC228
IC Inscribed circle diameter
4.76 mm
ID Technical product number
5901351
IH Insert hand
L - Left
INSL Insert length
8 mm
Interface codes
J6 /
ISYC Subclass
202-08 - Lay-down threading insert, triangle shape, three cutting edges, one tooth
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
IS-08IL
Name Identifying order number
08IL A 60 IC228
NOF Flute count
3
NT Tooth count
1
PDPT Profile depth insert
0.6 mm
PFS Profile form
6
REL Corner radius left hand
0.05 mm
RER Corner radius right hand
0.05 mm
STDDES Standard designation
08IL A 60
THFT Thread form type
A60
TPN Thread pitch minimum
0.7 mm
TTP Thread type
I - Internal thread
Working process
DGI - Thread turning, internal
