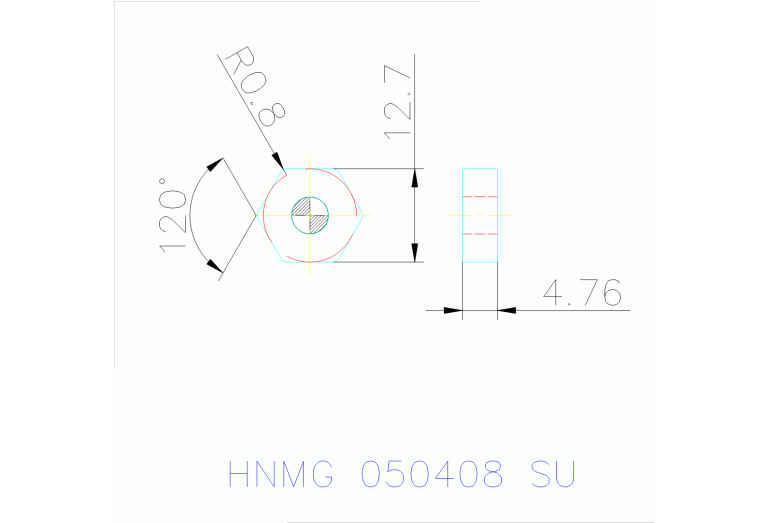

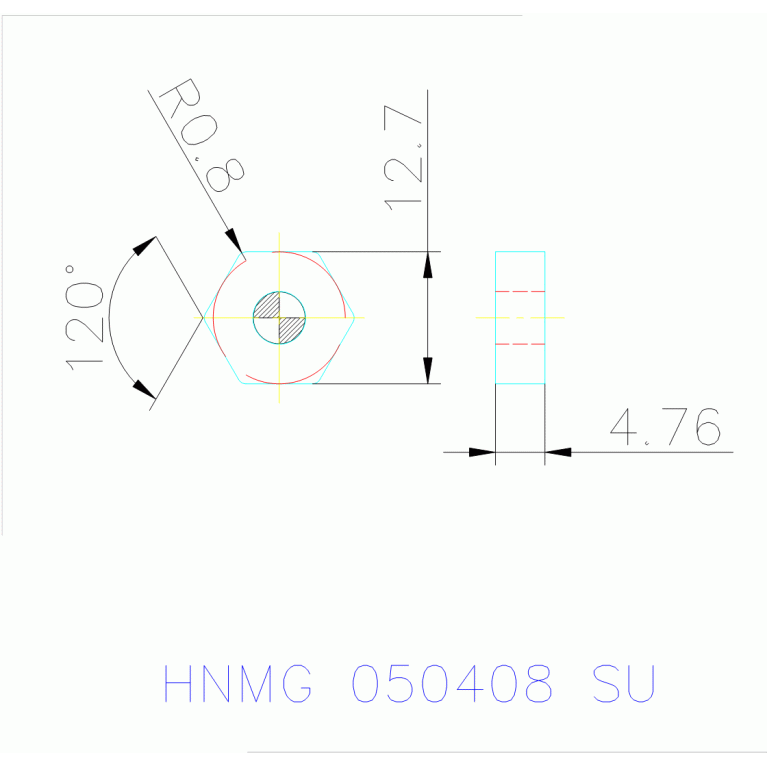

HNMG 050408 SU TT5080

Артикул: 5523132

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CB Chip breaker face count

0 - Without chip breaker

COATN Coating

TiAlN+TiN

COMPC Company code

IL - Ingersoll

Delivery state

LL - Stock limited

DIN

HN0504082N

EPSR Insert included angle

120 Degree

FamilyProducts

insert, Negative 120° hexagonal inserts for medium roughing

GRD2ND Standard designation of the grade 2nd application

M05-M25

GRD3RD Standard designation of the grade 3rd application

S05-S25

GRDMFG Grade manufacturers designation

TT5080

IC Inscribed circle diameter

12.7 mm

ID Technical product number

5523132

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-08 - Hexagonal insert

L Cutting edge length

6.2 mm

LE Cutting edge effective length

1.5 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

HN0504082N

Name Identifying order number

HNMG 050408 SU TT5080

RE Corner radius

0.8 mm

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

HNMG050408

TCINS Tolerance class insert

Working process

No working processes available
