Главная Каталог продукции Toolunited 16 201-04 - Rectangular insert LOMX 402224-H6P IC8250

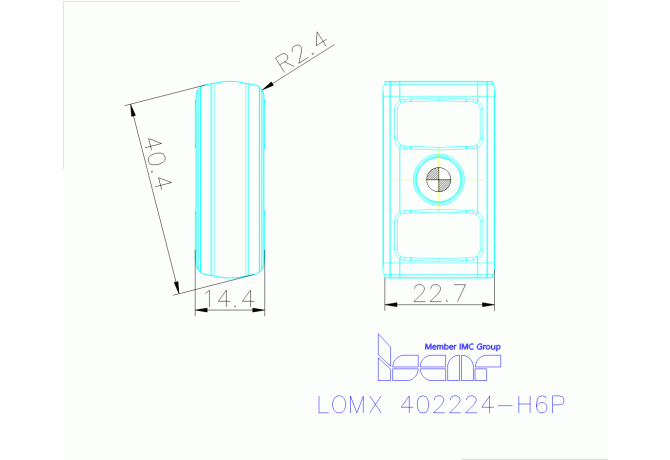

LOMX 402224-H6P IC8250

Артикул: LOMX 402224-H6P IC8250

В наличии

В корзину

Описание

Характеристики

CBMD Chip breaker manufacturers designation

H6P

COATN Coating / Покрытие

TiN-TiCN

COMPC Company code

IS - Iscar

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

8/7/2014

DIN

LO4022242N

EPSR Insert included angle

90 Degree

FamilyProducts

Tangential Insert with 4 Cutting Edges

GRD2ND Standard designation of the grade 2nd application

HC-P01

GRD3RD Standard designation of the grade 3rd application

HC-K15

GRDMFG Grade manufacturers designation

IC8250

GRDPRIO Standard designation of the grade main application

HC-P35

IC Inscribed circle diameter

40 mm

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-04 - Rectangular insert

L Cutting edge length

14.4 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

LO4022242N

Materials

Name Identifying order number

LOMX 402224-H6P IC8250

RE Corner radius

2.4 mm

S Insert thickness

22.6 mm

S1 Insert thickness total

22.6 mm

TCINS Tolerance class insert

Working process

FEC - Square shoulder milling,FNU - Groove milling,FPL - Face milling
