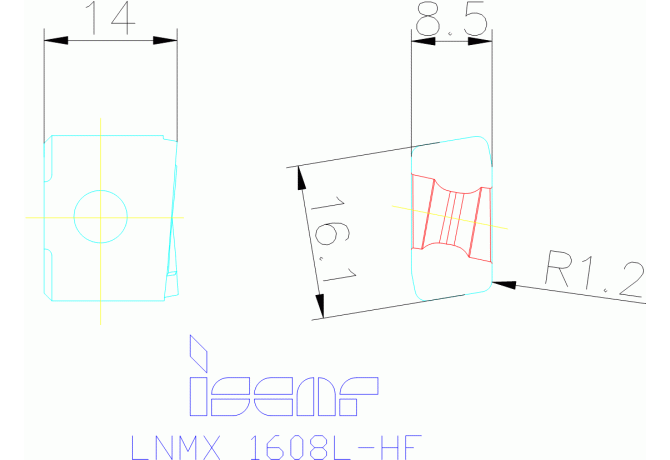

LNMX 1608L-HF IC9150

Артикул: 5508500

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

COATN Coating

CVD

COMPC Company code

IS - Iscar

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

2/1/2012

DIN

LN1608 3L

EPSR Insert included angle

90 Degree

FamilyProducts

LNMX 1608L-HF IC9150

GRD2ND Standard designation of the grade 2nd application

HC-P01

GRD3RD Standard designation of the grade 3rd application

HC-K15

GRDMFG Grade manufacturers designation

IC9150

GRDPRIO Standard designation of the grade main application

HC-P35

IC Inscribed circle diameter

8.5 mm

ID Technical product number

5508500

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

L - Left

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-04 - Rectangular insert

L Cutting edge length

16 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

LN1608 3L

Materials

Name Identifying order number

LNMX 1608L-HF IC9150

RE Corner radius

1.2 mm

S Insert thickness

14 mm

S1 Insert thickness total

14 mm

TCINS Tolerance class insert

W1 Insert width

8.5 mm

Working process

No working processes available
