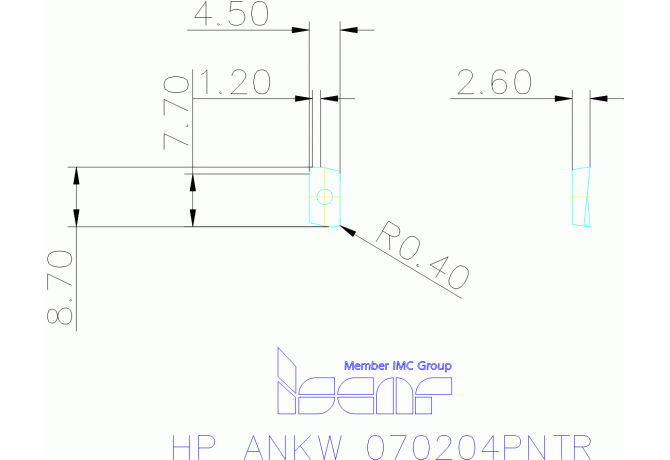

HP ANKW 070204PNTR IC910

Артикул: 5604818

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

BS Wiper edge length

1.2 mm

CECC Cutting edge condition code

T - Chamfered

COATN Coating

AlTiN

COMPC Company code

IS - Iscar

DIN

IS-772086009226440

FamilyProducts

Insert with a 7 mm Helical Edge and Flat Rake for Rough Machining and Hardened Steel

GRDMFG Grade manufacturers designation

IC910

IC Inscribed circle diameter

4.5 mm

ID Technical product number

5604818

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

Interface codes

J6 / J441

ISISO ISO property

ISO

IS$$772086009226440

ISYC Subclass

201-04 - Rectangular insert

L Cutting edge length

8.7 mm

LE Cutting edge effective length

7.7 mm

LOC-03 ISO

IS$$772086009226440

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

IS-772086009226440

Name Identifying order number

HP ANKW 070204PNTR IC910

RE Corner radius

0.4 mm

S Insert thickness

2.6 mm

W1 Insert width

4.5 mm

Working process

No working processes available
