Главная Каталог продукции Toolunited 16 201-04 - Rectangular insert HP ANKT 0702PNTR IC908

HP ANKT 0702PNTR IC908

Артикул: 5604341

В наличии

В корзину

Описание

Характеристики

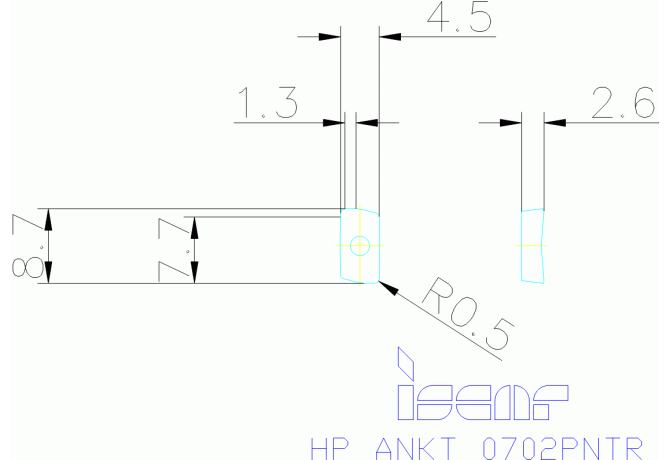

AN Clearance angle major

0 Degree

BS Wiper edge length

1.3 mm

CECC Cutting edge condition code

T - Chamfered

COATN Coating

TiAlN

COMPC Company code

IS - Iscar

DIN

IS-801002456752224

FamilyProducts

Inserts with a 7.7 mm Helical Edge and Various Corner Radii for General Use

GRDMFG Grade manufacturers designation

IC908

IC Inscribed circle diameter

4.5 mm

ID Technical product number

5604341

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

Interface codes

J6 / J441

ISISO ISO property

ISO

IS$$801002456752224

ISYC Subclass

201-04 - Rectangular insert

L Cutting edge length

8.7 mm

LE Cutting edge effective length

7.7 mm

LOC-03 ISO

IS$$801002456752224

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

IS-801002456752224

Name Identifying order number

HP ANKT 0702PNTR IC908

RE Corner radius

0.5 mm

S Insert thickness

2.6 mm

W1 Insert width

4.5 mm

Working process

No working processes available
