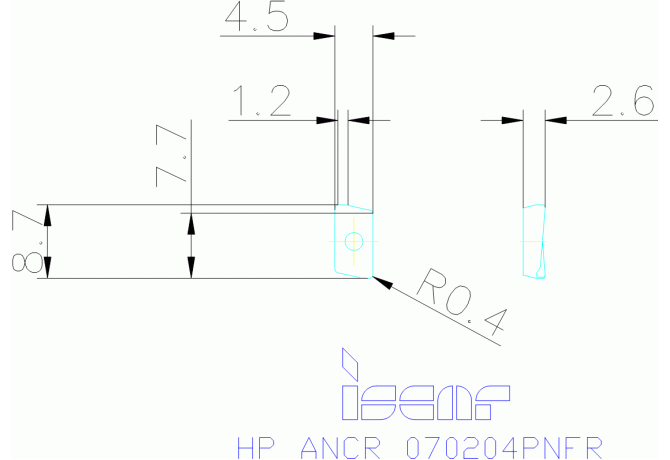

HP ANCR 070204PNFR IC328

Артикул: 5604597

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

BS Wiper edge length

1.2 mm

CECC Cutting edge condition code

T - Chamfered

COATN Coating / Покрытие

TiCN

COMPC Company code

IS - Iscar

DIN

IS-772086009226440

FamilyProducts

Peripherally Ground Inserts with a Super Positive Chipformer for Machining Aluminum, Titanium and Magnesium

GRDMFG Grade manufacturers designation

IC328

IC Inscribed circle diameter

4.5 mm

ID Technical product number

5604597

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

Interface codes

J6 / J441

ISISO ISO property

ISO

IS$$772086009226440

ISYC Subclass

201-04 - Rectangular insert

L Cutting edge length

8.7 mm

LE Cutting edge effective length

7.7 mm

LOC-03 ISO

IS$$772086009226440

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

IS-772086009226440

Name Identifying order number

HP ANCR 070204PNFR IC328

RE Corner radius

0.4 mm

S Insert thickness

2.6 mm

W1 Insert width

4.5 mm

Working process

No working processes available
