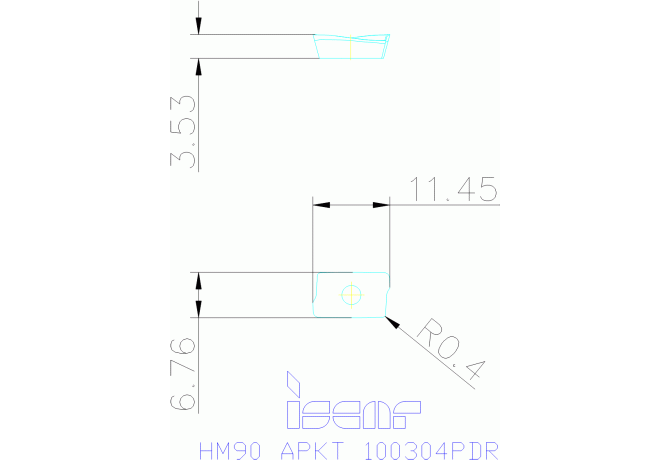

HM90 APKT 100304PDR IC928

Артикул: 5602963

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

11 Degree

BS Wiper edge length

1.78 mm

CECC Cutting edge condition code

T - Chamfered

COATN Coating

TiAlN

COMPC Company code

IS - Iscar

DIN

IS-2444992499855778

FamilyProducts

General Use Inserts with 2 Helical Cutting Edges for High 90° Shoulder Accuracy

GRDMFG Grade manufacturers designation

IC928

IC Inscribed circle diameter

6.76 mm

ID Technical product number

5602963

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

Interface codes

J6 / J441

ISISO ISO property

ISO

IS$$2444992499855778

ISYC Subclass

201-04 - Rectangular insert

L Cutting edge length

11.45 mm

LE Cutting edge effective length

10.25 mm

LOC-03 ISO

IS$$2444992499855778

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

IS-2444992499855778

Name Identifying order number

HM90 APKT 100304PDR IC928

RE Corner radius

0.4 mm

S Insert thickness

3.53 mm

W1 Insert width

6.76 mm

Working process

No working processes available
