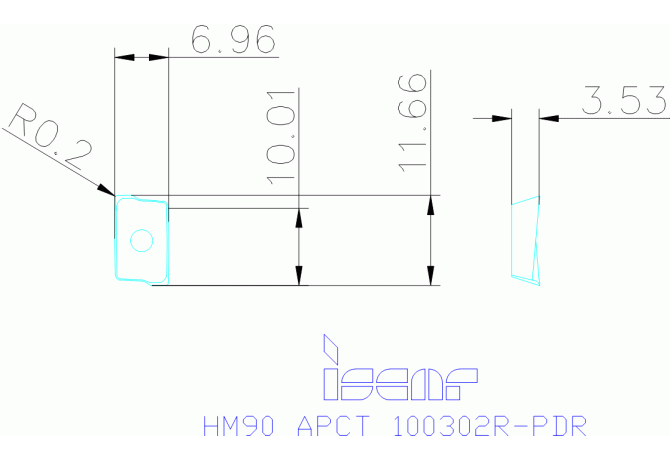

HM90 APCT 100302R-PDR IC928
HM90 APCT 100302R-PDR IC928
Артикул:
5602960
В наличии
Характеристики
AN Clearance angle major
11 Degree
BS Wiper edge length
1.9 mm
CECC Cutting edge condition code
T - Chamfered
COATN Coating
TiAlN
COMPC Company code
IS - Iscar
DIN
IS-2416083371095152
FamilyProducts
Inserts with a Sharp Cutting Edge for Semi-Finishing and Finishing
GRDMFG Grade manufacturers designation
IC928
IC Inscribed circle diameter
6.96 mm
ID Technical product number
5602960
IFS Insert mounting style code
3 - Counter bore for screws with taper angle from 40° to 60°
IH Insert hand
R - Right
Interface codes
J6 / J441
ISISO ISO property
0
ISO
IS$$2416083371095152
ISYC Subclass
201-04 - Rectangular insert
L Cutting edge length
11.66 mm
LE Cutting edge effective length
10.1 mm
LOC-03 ISO
IS$$2416083371095152
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
IS-2416083371095152
Name Identifying order number
HM90 APCT 100302R-PDR IC928
RE Corner radius
0.2 mm
S Insert thickness
3.53 mm
W1 Insert width
6.96 mm
Working process
No working processes available
