Главная Каталог продукции Toolunited 16 201-04 - Rectangular insert HM90 APCR 160516R-P IC28

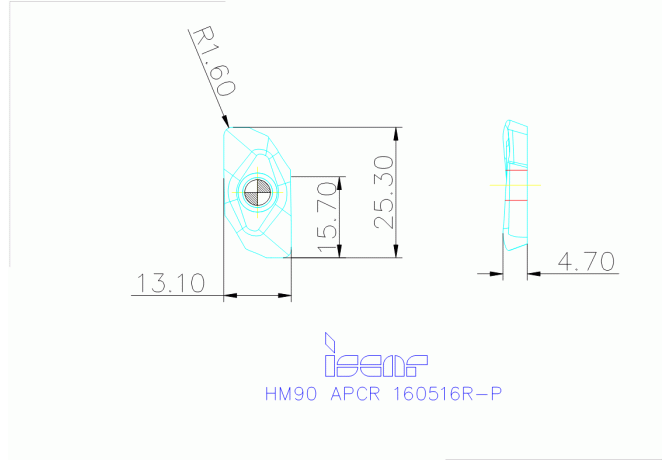

HM90 APCR 160516R-P IC28

Артикул: 5603287

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

11 Degree

CECC Cutting edge condition code

F - Sharpedged

COATN Coating

ohne

COMPC Company code

IS - Iscar

DIN

IS-386750586674200

FamilyProducts

Super Positive Inserts with a Polished Rake for Machining Aluminum

GRDMFG Grade manufacturers designation

IC28

IC Inscribed circle diameter

12.8 mm

ID Technical product number

5603287

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

Interface codes

J6 / J441

ISISO ISO property

ISO

IS$$386750586674200

ISYC Subclass

201-04 - Rectangular insert

L Cutting edge length

25.5 mm

LE Cutting edge effective length

15.7 mm

LOC-03 ISO

IS$$386750586674200

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

IS-386750586674200

Name Identifying order number

HM90 APCR 160516R-P IC28

RE Corner radius

1.6 mm

S Insert thickness

4.8 mm

W1 Insert width

12.8 mm

Working process

No working processes available

WT Weight of item

0.01 kg
