Главная Каталог продукции Toolunited 16 201-04 - Rectangular insert HM90 ADKW 1505PDR IC928

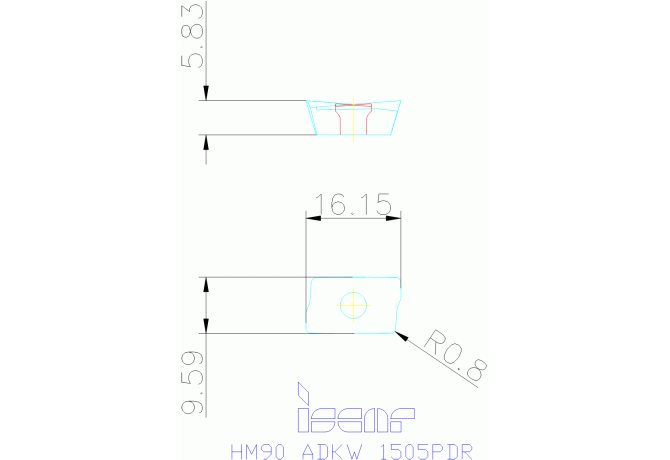

HM90 ADKW 1505PDR IC928

Артикул: 5604499

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

15 Degree

BS Wiper edge length

2.45 mm

CECC Cutting edge condition code

T - Chamfered

COATN Coating

TiAlN

COMPC Company code

IS - Iscar

DIN

IS-1494245005933579

FamilyProducts

Milling Inserts for Unfavorable Conditions and Heavy Interrupted Cut on Hardened Steel

GRDMFG Grade manufacturers designation

IC928

IC Inscribed circle diameter

9.59 mm

ID Technical product number

5604499

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

Interface codes

J6 / J441

ISISO ISO property

ISO

IS$$1494245005933579

ISYC Subclass

201-04 - Rectangular insert

L Cutting edge length

16.15 mm

LE Cutting edge effective length

14.15 mm

LOC-03 ISO

IS$$1494245005933579

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

IS-1494245005933579

Name Identifying order number

HM90 ADKW 1505PDR IC928

RE Corner radius

0.8 mm

S Insert thickness

5.83 mm

W1 Insert width

9.59 mm

Working process

No working processes available

WT Weight of item

0.01 kg
