Главная Каталог продукции Toolunited 16 201-04 - Rectangular insert H490 ANKX 1205R15T-FF IC830

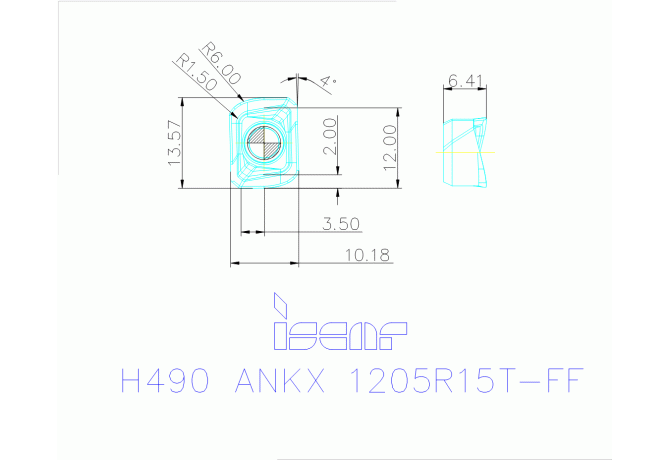

H490 ANKX 1205R15T-FF IC830

Артикул: 5606392

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

15 Degree

BS Wiper edge length

3.5 mm

CECC Cutting edge condition code

T - Chamfered

COATN Coating

TiAlN/AlTiN+TiN

COMPC Company code

IS - Iscar

DIN

IS-347373594662670

FamilyProducts

Single-Sided Rectangular Inserts with 2 Helical Cutting Edges for Fast Feed Milling at Small Depths of Cut

GRDMFG Grade manufacturers designation

IC830

IC Inscribed circle diameter

10.2 mm

ID Technical product number

5606392

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

Interface codes

J6 / J441

ISISO ISO property

ISO

IS$$347373594662670

ISYC Subclass

201-04 - Rectangular insert

L Cutting edge length

13.5 mm

LOC-03 ISO

IS$$347373594662670

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

IS-347373594662670

Name Identifying order number

H490 ANKX 1205R15T-FF IC830

RE Corner radius

1.5 mm

S Insert thickness

6.4 mm

W1 Insert width

10.2 mm

Working process

No working processes available

WT Weight of item

0.01 kg
