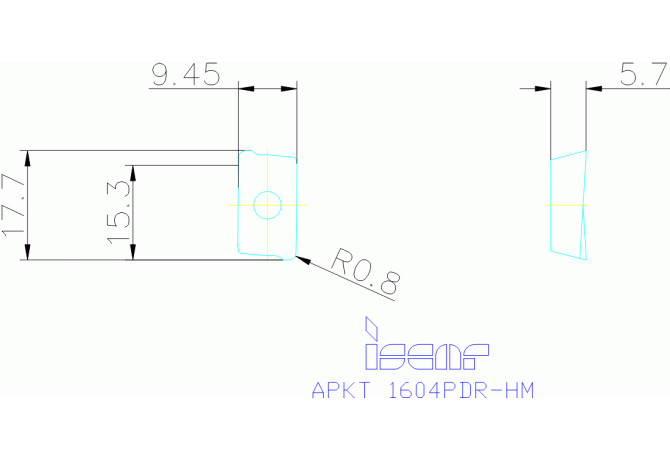

APKT 1604PDR-HM IC910
APKT 1604PDR-HM IC910
Артикул:
5601913
В наличии
Характеристики
AN Clearance angle major
11 Degree
BS Wiper edge length
1.78 mm
CBMD Chip breaker manufacturers designation
HM
CECC Cutting edge condition code
T - Chamfered
COATN Coating
AlTiN
COMPC Company code
IS - Iscar
FamilyProducts
Milling Inserts with a 16 mm Cutting Edge Length and Positive Rake Angle for General Use
GRDMFG Grade manufacturers designation
IC910
IC Inscribed circle diameter
9.45 mm
ID Technical product number
5601913
IFS Insert mounting style code
3 - Counter bore for screws with taper angle from 40° to 60°
IH Insert hand
R - Right
Interface codes
/
ISISO ISO property
0
ISYC Subclass
201-04 - Rectangular insert
L Cutting edge length
17.2 mm
LE Cutting edge effective length
15.3 mm
Name Identifying order number
APKT 1604PDR-HM IC910
RE Corner radius
0.8 mm
S Insert thickness
5.25 mm
W1 Insert width
9.45 mm
Working process
No working processes available
WT Weight of item
0.01 kg
