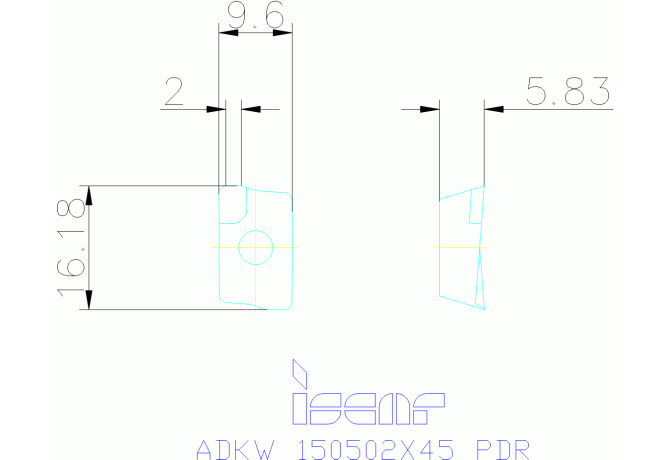

ADKW 150502X45 PDR ID5

Артикул: 5695991

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

15 Degree

BS Wiper edge length

2 mm

CECC Cutting edge condition code

T - Chamfered

COATN Coating

ohne

COMPC Company code

IS - Iscar

DIN

IS-1158178845131269

FamilyProducts

Single Corner R.H. PCD Tipped Inserts for Milling Aluminum

GRDMFG Grade manufacturers designation

ID5

IC Inscribed circle diameter

9.6 mm

ID Technical product number

5695991

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

Interface codes

J6 / J441

ISISO ISO property

ISO

IS$$1158178845131269

ISYC Subclass

201-04 - Rectangular insert

L Cutting edge length

16.18 mm

LE Cutting edge effective length

2 mm

LOC-03 ISO

IS$$1158178845131269

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

IS-1158178845131269

Name Identifying order number

ADKW 150502X45 PDR ID5

S Insert thickness

5.83 mm

TCE Tipped cutting edge code

W1 Insert width

9.6 mm

Working process

No working processes available

WT Weight of item

0.01 kg
