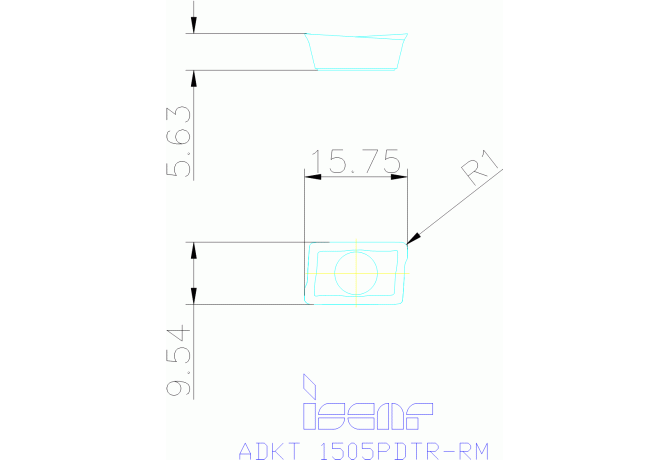

ADKT 1505PDTR-RM IC5400

Артикул: 5606667

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

15 Degree

AS Clearance angle wiper edge

15 Degree

BS Wiper edge length

1.6 mm

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

CECC Cutting edge condition code

T - Chamfered

COMPC Company code

IS - Iscar

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

2/1/2012

DIN

AD1505PD3R

EPSR Insert included angle

90 Degree

FamilyProducts

Insert with Reinforced Helical Cutting Edge, for Interrupted Cut and Heavy Machi

GRDMFG Grade manufacturers designation

IC5400

IC Inscribed circle diameter

9.54 mm

ID Technical product number

5606667

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-04 - Rectangular insert

KRINS Cutting edge angle major

90 Degree

L Cutting edge length

15.75 mm

LE Cutting edge effective length

13.9 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

AD1505PD3R

Name Identifying order number

ADKT 1505PDTR-RM IC5400

NOI Insert index count

RE Corner radius

1 mm

S Insert thickness

5.63 mm

S1 Insert thickness total

5.63 mm

TCINS Tolerance class insert

K - Cold formed

W1 Insert width

9.54 mm

Working process

No working processes available
