Главная Каталог продукции Toolunited 16 201-04 - Rectangular insert ADKT 1505ADR-RM IC950

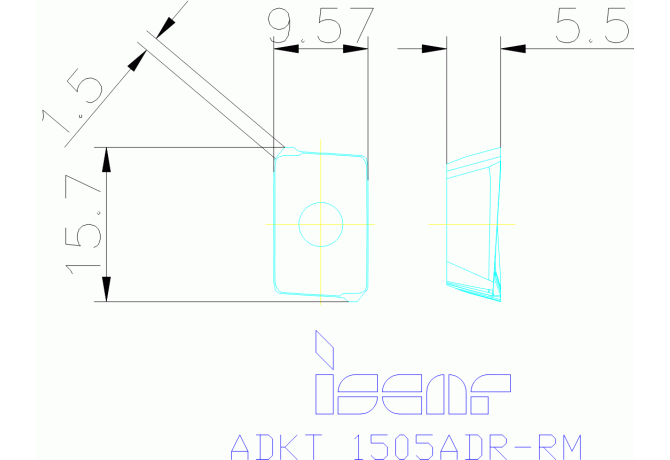

ADKT 1505ADR-RM IC950

Артикул: 5696057

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

15 Degree

BS Wiper edge length

1.6 mm

CBMD Chip breaker manufacturers designation

CECC Cutting edge condition code

T - Chamfered

COMPC Company code

IS - Iscar

FamilyProducts

Milling Inserts with a Reinforced Cutting Edge, for Heavy Machining Applications and General Use

GRDMFG Grade manufacturers designation

IC950

IC Inscribed circle diameter

9.57 mm

ID Technical product number

5696057

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

Interface codes

ISISO ISO property

ISYC Subclass

201-04 - Rectangular insert

KRINS Cutting edge angle major

45 Degree

L Cutting edge length

15.7 mm

Name Identifying order number

ADKT 1505ADR-RM IC950

S Insert thickness

5.5 mm

W1 Insert width

9.57 mm

Working process

No working processes available

WT Weight of item

0.01 kg
