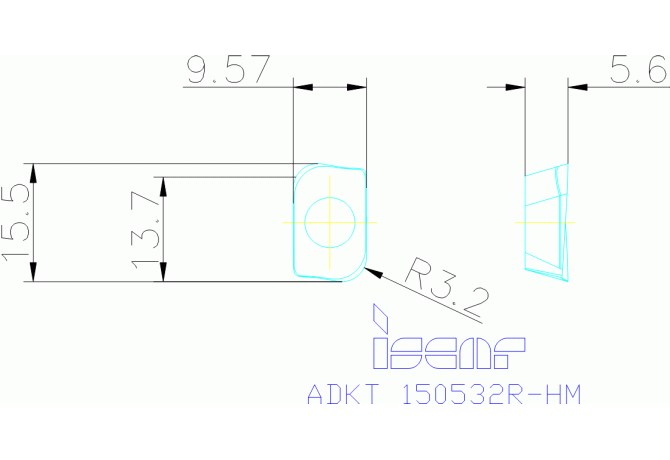

ADKT 150532R-HM IC30N

Артикул: 5601111

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

15 Degree

CECC Cutting edge condition code

T - Chamfered

COATN Coating

ohne

COMPC Company code

IS - Iscar

DIN

IS-1639541503163621

FamilyProducts

Inserts with 2 Helical Cutting Edges and Various Corner Radii for General Use

GRDMFG Grade manufacturers designation

IC30N

IC Inscribed circle diameter

9.57 mm

ID Technical product number

5601111

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

Interface codes

J6 / J441

ISISO ISO property

ISO

IS$$1639541503163621

ISYC Subclass

201-04 - Rectangular insert

L Cutting edge length

15.5 mm

LE Cutting edge effective length

13.7 mm

LOC-03 ISO

IS$$1639541503163621

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

IS-1639541503163621

Name Identifying order number

ADKT 150532R-HM IC30N

RE Corner radius

3.2 mm

S Insert thickness

5.6 mm

W1 Insert width

9.57 mm

Working process

No working processes available
