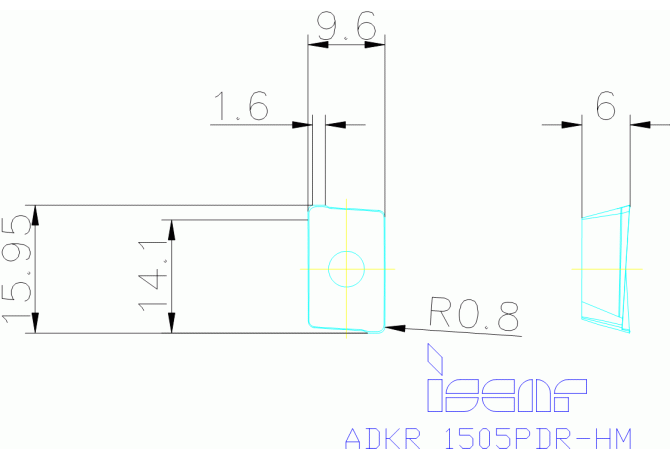

ADKR 1505PDR-HM IC250
ADKR 1505PDR-HM IC250
Артикул:
5600743
В наличии
Характеристики
AN Clearance angle major
15 Degree
AS Clearance angle wiper edge
15 Degree
BS Wiper edge length
1.6 mm
CB Chip breaker face count
1 - With chip breaker one-side
CBMD Chip breaker manufacturers designation
HM
COATN Coating
TiN
COMPC Company code
IS - Iscar
CSP Coolant supply property
0 - Without coolant supply
Delivery state valid from
2/1/2012
DIN
AD1505PD1R
EPSR Insert included angle
90 Degree
FamilyProducts
ADKR 1505PDR-HM IC250
GRD2ND Standard designation of the grade 2nd application
HC-P35
GRD3RD Standard designation of the grade 3rd application
HC-M40
GRDMFG Grade manufacturers designation
IC250
GRDPRIO Standard designation of the grade main application
HC-P15
IC Inscribed circle diameter
9.6 mm
ID Technical product number
5600743
IFS Insert mounting style code
1 - Without bore
IH Insert hand
R - Right
Interface codes
J6 /
ISISO ISO property
0
ISYC Subclass
201-04 - Rectangular insert
KRINS Cutting edge angle major
90 Degree
L Cutting edge length
15.95 mm
LE Cutting edge effective length
14.1 mm
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
AD1505PD1R
Name Identifying order number
ADKR 1505PDR-HM IC250
NOI Insert index count
2
RE Corner radius
0.8 mm
S Insert thickness
6 mm
S1 Insert thickness total
6 mm
TCINS Tolerance class insert
K - Cold formed
W1 Insert width
9.6 mm
Working process
No working processes available
