ADCT 1505PDFR-HM IC928

Артикул: 5698498

В наличии

В корзину

Описание

Характеристики

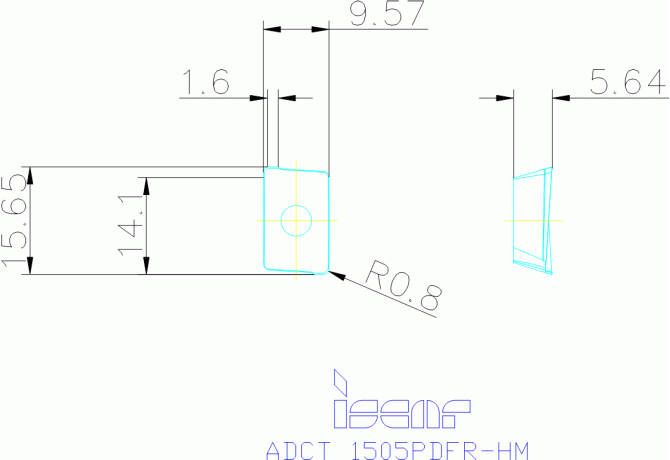

AN Clearance angle major

15 Degree

BS Wiper edge length

1.6 mm

CBMD Chip breaker manufacturers designation

CECC Cutting edge condition code

T - Chamfered

COATN Coating / Покрытие

TiAlN

COMPC Company code

IS - Iscar

DIN

IS-1629928012469436

FamilyProducts

Peripherally Ground Inserts for Finishing and General Use

GRDMFG Grade manufacturers designation

IC928

IC Inscribed circle diameter

9.57 mm

ID Technical product number

5698498

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

Interface codes

J6 / J441

ISISO ISO property

ISO

IS$$1629928012469436

ISYC Subclass

201-04 - Rectangular insert

L Cutting edge length

15.65 mm

LE Cutting edge effective length

14.1 mm

LOC-03 ISO

IS$$1629928012469436

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

IS-1629928012469436

Name Identifying order number

ADCT 1505PDFR-HM IC928

RE Corner radius

0.8 mm

S Insert thickness

5.64 mm

W1 Insert width

9.57 mm

Working process

No working processes available

WT Weight of item

0.01 kg
