ADCR 1505PDFR-P IC28

Артикул: 5690893

В наличии

В корзину

Описание

Характеристики

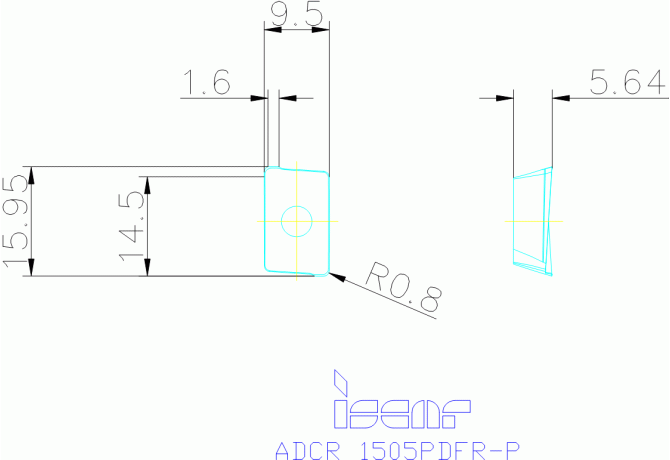

AN Clearance angle major

15 Degree

BS Wiper edge length

1.6 mm

CECC Cutting edge condition code

F - Sharpedged

COATN Coating / Покрытие

ohne

COMPC Company code

IS - Iscar

DIN

IS-1494245005933579

FamilyProducts

Super Positive Precision Inserts for Aluminum, Stainless Steel and High Temperature Alloys

GRDMFG Grade manufacturers designation

IC28

IC Inscribed circle diameter

9.5 mm

ID Technical product number

5690893

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

Interface codes

J6 / J441

ISISO ISO property

ISO

IS$$1494245005933579

ISYC Subclass

201-04 - Rectangular insert

L Cutting edge length

15.95 mm

LE Cutting edge effective length

14.5 mm

LOC-03 ISO

IS$$1494245005933579

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

IS-1494245005933579

Name Identifying order number

ADCR 1505PDFR-P IC28

RE Corner radius

0.8 mm

S Insert thickness

5.64 mm

W1 Insert width

9.5 mm

Working process

No working processes available

WT Weight of item

0.01 kg
